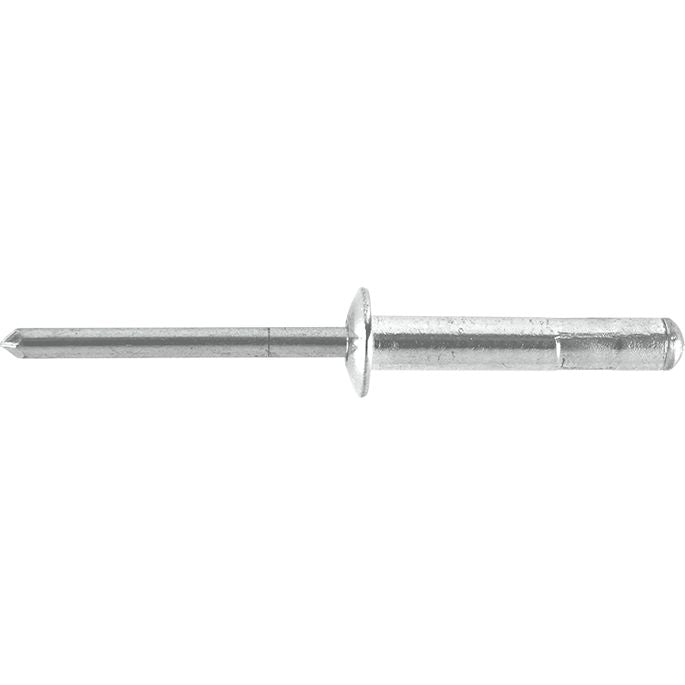

Multi-Grip Rivet Dome Head Aluminum 3/16"
(Pack of 100.0)

Kent Automotive

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 11-114

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M8-1.25 x 12mm

Item#: 28686

Hex Flange Bolt Grade 10.9 M6-1 x 45mm

Item#: 28685

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543602

Multi-Grip Rivet Dome Head Aluminum 1/4"

Item#: 1543603

Multi-Grip Rivet 120° Countersunk Head 1/8"

Item#: 1543584

Nosepiece for 51898 Rivet Tool 3/16"

Item#: 51905

Replacement Jaw Set for 51898 Rivet Tool

Item#: 53290

Pull Rivet Dome Head Aluminum 5/32"

Item#: P61723M01

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1543601
Type Multi-Grip
Head Style Dome Head
Material Body/Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.500 – 0.750 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.386 "
Head Height 0.057 "
Body Length 0.978 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.79 lb
