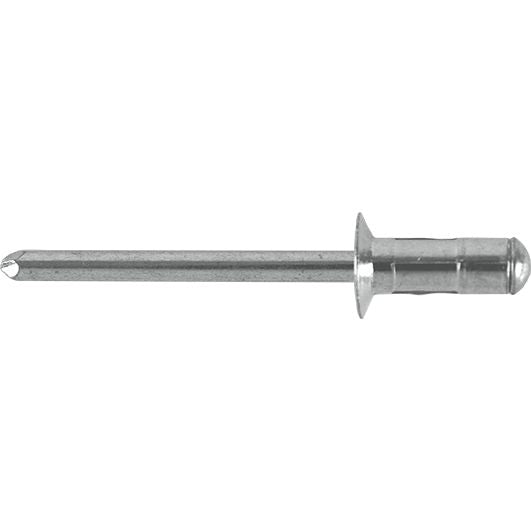

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.062 to 0.312" Grip Range, 0.5" Body Length
(Pack of 100)

Item#: 1543586

Kent Automotive

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


Blind Rivet Nut Insert Thin Wall M6-1

Item#: 1405793

DIN 125A Flat Washer Grade 140 HV M12

Item#: 80265

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543593

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543601

Multi-Grip Rivet 120° Countersunk Head 5/32"

Item#: 1543585

Open End Rivet Dome Head Aluminum 1/4"

Item#: 85105

Open End Rivet Large Flange Head Steel 3/16"

Item#: 82348

Pull Rivet Dome Head 1/8"

Item#: 1950M01

Fender and Bumper Push-Type Retainer Nylon 18mm

Item#: P86117

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Air Distributor Defroster Push-Type Retainer

Item#: P85035

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543586
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body / Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.062 – 0.312 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.345 "
Head Height 0.051 "
Body Length 0.500 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.5 lb
