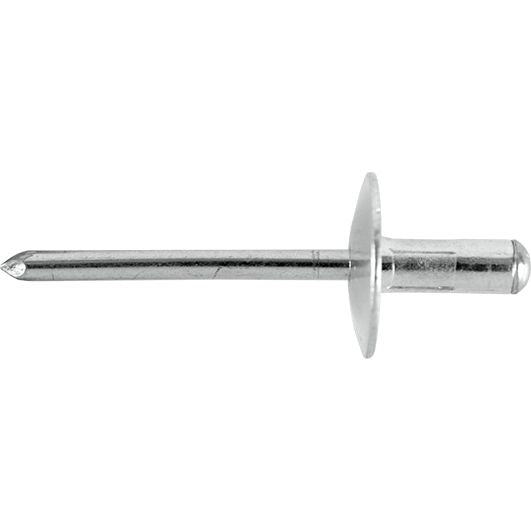

Multi-Grip Rivet Large Flange Head Aluminum 3/16"
(Pack of
100.0)
Large Flange
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-114
Frequently Bought Together
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Multi-Grip Rivet 120° Countersunk Head 1/8"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Product Description
Large Flange• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 1543592 |
|---|---|
| Type | Multi-Grip |
| Head Style | Large Flange |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.250 " |
| Hole Size | 0.192 – 0.200 " |
| Head Diameter | 0.625 " |
| Head Height | 0.069 " |
| Body Length | 0.406 " |
| Shear Strength | 350 lb |
| Tensile Strength | 530 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.72 lb |
