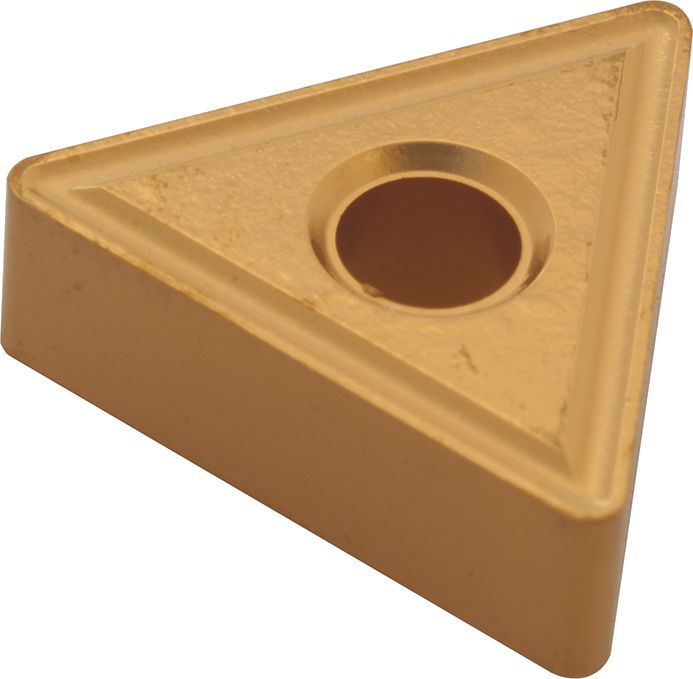

Triangle Negative Insert
(Pack of
10)
SKU:1353709 Item#: 1353709
Multi-material, Negative Molded Insert, Honed Edge
Frequently Bought Together
Shield Push-Type Retainer with Metal Insert
Item#: P85253
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Item#: P85316
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Item#: KT13321
$0.00
Couldn't load pickup availability
Product Description
Multi-material, Negative Molded Insert, Honed EdgeTechnical Specifications
| Item#: | 1353709 |
|---|---|
| Type | Insert |
| Insert | TNMG |
| Chip Breaker Code | UGN |
| Compatible Materials | Multi Materials |
| Shape | 60° Triangle |
| Direction | Neutral |
| Clearance Angle | 0° Negative |
| Grade | DUC25UT |
| Material | Carbide |
| Coating | CVD |
| Effective Cutting Edge Length | 0.314 " |
| Length | 0.629 " |
| Depth of Cut | 0.24 " |
| Feed Rate | 0.031 |
| Surface Feet Per Minute | 1023 |
| Thickness | 0.1875 " |
| I.C. (Inscribed Circle) | 0.375 " |
| Insert Tip Radius | 0.0312 " |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
