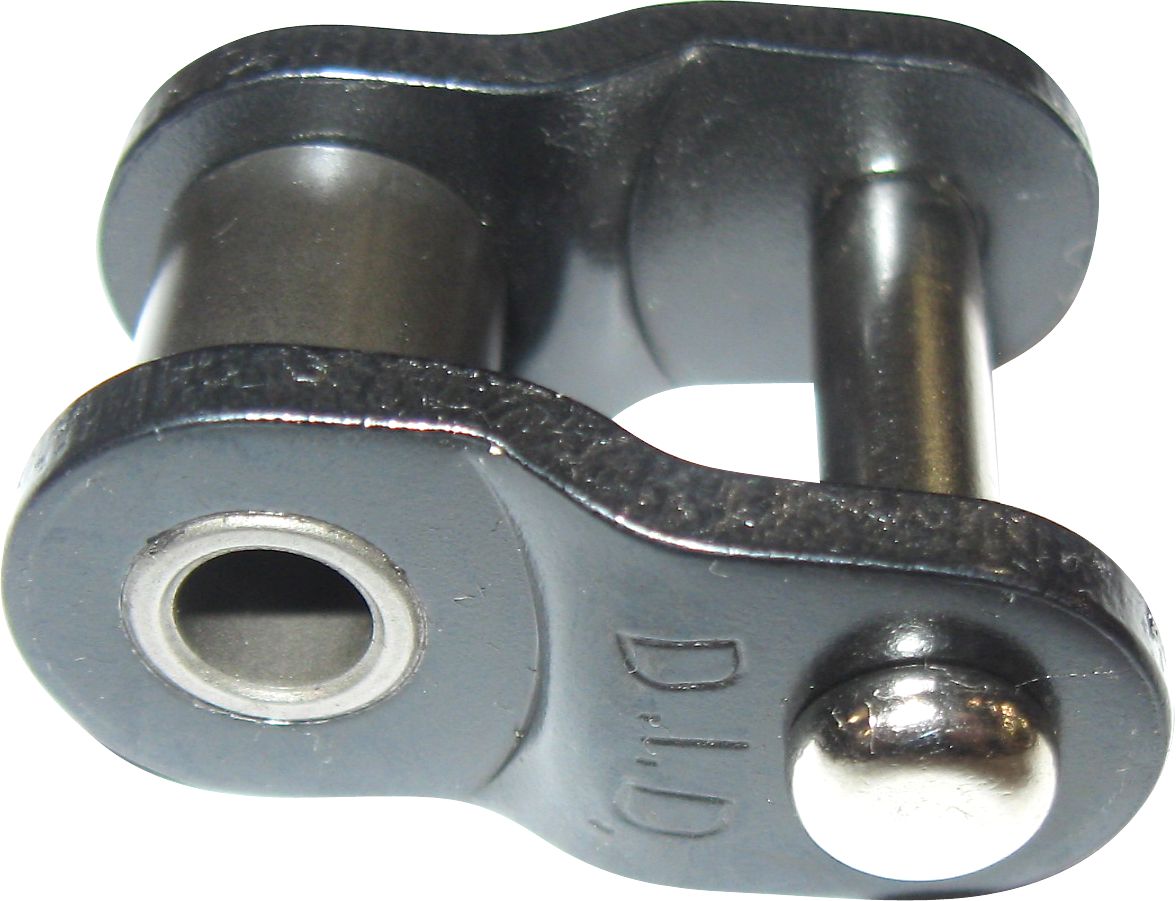

Offset Link (Half Link), Single Strand, Sintered Bushing, Steel, Industry No. 40, 1/2" Pitch, 4,004lbs Average Tensile Strength
(Pack of
5)
SKU:1443478 Item#: 1443478
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Frequently Bought Together
Offset Link (Half Link), Single Strand, Steel, Industry No. 41
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 25
$0.00
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 50-2
$0.00
Couldn't load pickup availability
6ft Parallel Sectional Ladder S7706-1
$0.00
Couldn't load pickup availability
8ft Fiberglass Leaning Ladder L6208
$0.00
Couldn't load pickup availability
6ft Fiberglass Leaning Ladder L6206
$0.00
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Nickel Plated, Industry No
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
$0.00
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 40
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443478 |
|---|---|
| Manufacturer Model #: | HL40UR |
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 40 |
| Pitch | 1/2 " |
| Roller Width | 0.313 " |
| Roller Diameter | 0.312 " |
| Plate Thickness | 0.079 " |
| Plate Height | 0.472 " |
| Average Tensile Strength | 4,004 lb |
| Maximum Load | 836 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
