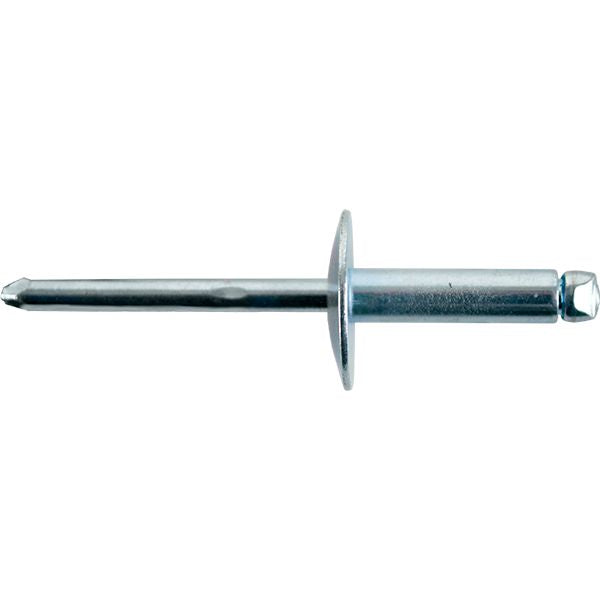

Open End Rivet, Large Flange Head, Steel, 1/8" Diameter, 0.313 to 0.375" Grip Range, 0.525" Body Length
(Pack of
100)
Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-111
Frequently Bought Together
DIN 125A Flat Washer Grade 140 HV M6
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Product Description
Large Flange• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 41626 |
|---|---|
| Type | Open End |
| Head Style | Large Flange |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/8 " |
| Grip Range | 0.313 – 0.375 " |
| Industry Number | 46 |
| Hole Size | 0.129 – 0.133 " |
| Drill Size | #30 |
| Head Diameter | 0.375 " |
| Head Height | 0.065 " |
| Body Length | 0.525 " |
| Shear Strength | 260 lb |
| Tensile Strength | 310 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.48 lb |
