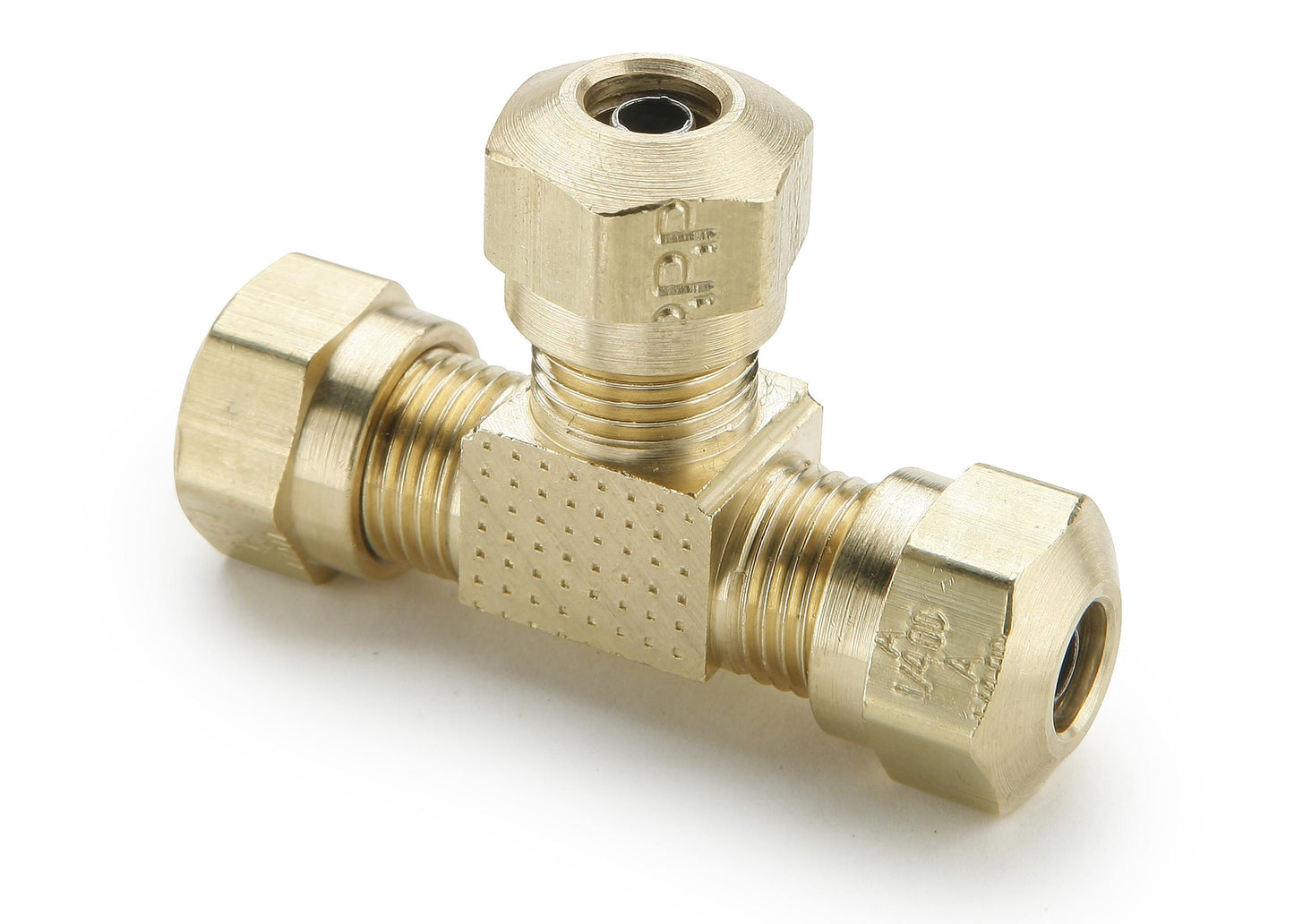

Parker DOT Compression - Nylon Union Tee 1/2x1/2x1/2
(Pack of
10)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-11
Frequently Bought Together
DOT Compression Elbow Male 90° Brass 3/4 x 1/2"
Couldn't load pickup availability
Parker DOT Compression - Nylon Female Elbow 90 Degrees 1/2x3/8
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/2"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x3/8
Couldn't load pickup availability
Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 3/8x1/8
Couldn't load pickup availability
Hose Connector Vacuum Line Cap 3/8" ID
Couldn't load pickup availability
Air Conditioning R134A Service Port Adapter 3/16"
Couldn't load pickup availability
Brass DOT Compression 1/4 and 3/8 Assortment
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84280P |
|---|---|
| Class | Compression Air Brake Fittings |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Union Tee |
| Connection Type A x B x C | Tube x Tube x Tube |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| Fitting Dimension C | 1/2 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 3.35 lb |
