Home Air Brake Push-to-Connect Parker DOT PTC Male Elbow Swivel 90 Degrees 3/8x3/8
Air Brake Push-to-Connect

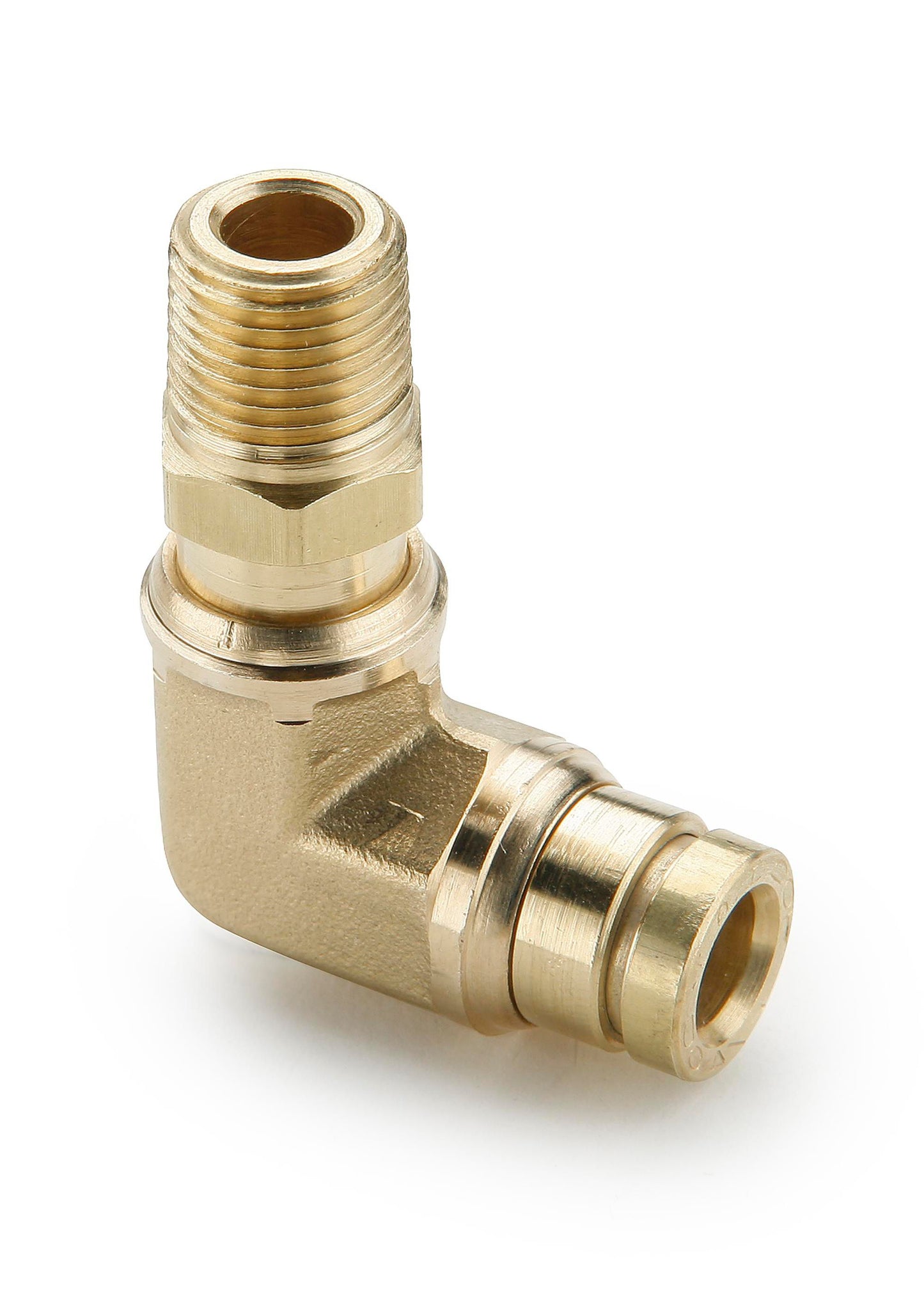

Parker DOT Brass Air Brake Fitting - Push-to-Connect Male Elbow Swivel 90 Degrees 3/8x3/8
(Pack of 10)

Item#: 27206P

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-13
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-6

Frequently Bought Together


Parker DOT PTC Female Elbow 1/4x1/8

Item#: 27212P

DOT Union Nylon 3/16 x 3/16"

Item#: 55305

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x3/8

Item#: 84302P

Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4

Item#: 84290P

Parker DOT Compression - Nylon Male Connector 3/8x1/8

Item#: 96886P

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

Vacuum Hose Connector 3/16 x 3/16"

Item#: 82092

Universal Hose Connector Straight 1/4"

Item#: P38713

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Item#: 5313

Pipe Adapter Brass 1/8-27 x 1/4-18

Item#: 5279

Pipe Adapter Brass 1/4-18 x 1/4-18

Item#: 5277

Rivet Nylon 1/4"

Item#: P21213

Front Bumper Push-Type Retainer Nylon 20mm

Item#: P15599

Metric Indented Hex Head Bolt with 17mm Washer

Item#: P59732

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-13
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 27206P
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Swivel Male Elbow 90 Degrees
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 3/8 "
Parker Reference No. 169PMT-6-6
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 1.81 lb
