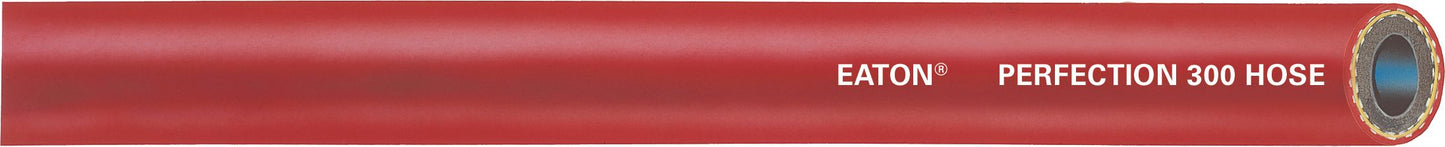

Perfection 300 Red Air/Multipurpose Vinyl Nitrile 1-Braid Nitrile 325 psi 5/16 (-5)
(Pack of
500)
SKU:41341 05 Item#: 41341 05
• Advantages:– Abrasion-, oil- and weather-resistant– Good oil resistance– Best coupling retention for impulse applications– Rugged, long life
• Agency Ratings: Tube – RMA Class A• Fittings Certified:– U-Series– 430 U-Series– Z-Series– Inserted Hose Ends: Standard Hose Barbs, Steel Nipple Inserts, Long Shank Inserts• Agency Approvals: N/A• Construction:– Inner Tube: Nitrile– Reinforcement: Fiber, one or two braid– Cover: Vinyl nitrile• Color: Red• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:– Pneumatic tools on production line; convey air and water– Provide power to air-operated equipment– Convey air and water• Markets:– Assembly/manufacturers– Construction– Forestry– Metalworking– Mining– Shipbuilding
Frequently Bought Together
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Product Description
• Advantages:– Abrasion-, oil- and weather-resistant– Good oil resistance– Best coupling retention for impulse applications– Rugged, long life• Agency Ratings: Tube – RMA Class A• Fittings Certified:– U-Series– 430 U-Series– Z-Series– Inserted Hose Ends: Standard Hose Barbs, Steel Nipple Inserts, Long Shank Inserts• Agency Approvals: N/A• Construction:– Inner Tube: Nitrile– Reinforcement: Fiber, one or two braid– Cover: Vinyl nitrile• Color: Red• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:– Pneumatic tools on production line; convey air and water– Provide power to air-operated equipment– Convey air and water• Markets:– Assembly/manufacturers– Construction– Forestry– Metalworking– Mining– Shipbuilding
Technical Specifications
| Item#: | 41341 05 |
|---|---|
| Manufacturer Model #: | H177705-500R |
| Type | Air and Multipurpose |
| Manufacturer Series Number | H1777 |
| Manufacturer Series Name | Perfection 300 |
| Dash Size | -5 |
| Working Pressure | 325 PSI |
| Hose I.D. | 5/16 " |
| Hose O.D. | 5/8 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1-Braid |
| Hose Cover Material | Vinyl Nitrile |
| Temperature Range | -40F to +180 F |
| Color | Red |
| Quantity Per Package | 500.0000 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | No |
