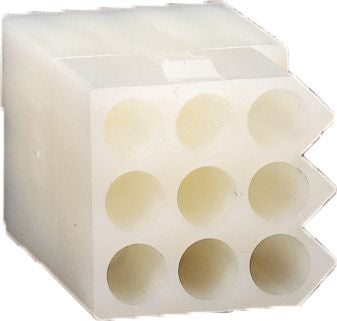

Power Connector Housing, 9-Wire Receptacle, 108 Amps, 250 Volts, Nylon
(Pack of
2)
SKU:98798 Item#: 98798
• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Frequently Bought Together
Heat Shrink Tubing 20 to 16 AWG Black
$0.00
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Power Connector Housing 1-Wire Receptacle
$0.00
Couldn't load pickup availability
Socket Terminal 22 to 18 AWG
$0.00
Couldn't load pickup availability
Power Connector Housing 12-Wire Plug
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Butt Connector 26 to 22 AWG
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 24 to 22 AWG Clear
$0.00
Couldn't load pickup availability
Product Description
• Tin-plated brass terminals• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Technical Specifications
| Item#: | 98798 |
|---|---|
| Type | Receptacle |
| Maximum Voltage | 250 V |
| Approvals | UL recognized File No. E-29179 and CSA certified, File No. LR-19980 |
| Description | 9 Wire |
| Style | Pin and Socket Receptacles |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
