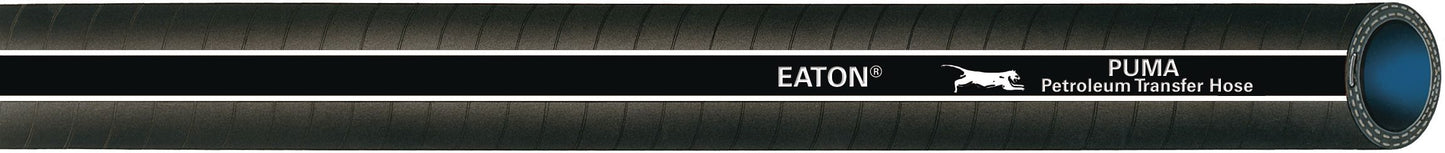

Puma Petroleum Transfer Black Petroleum Transfer Vinyl Nitrile 4-Ply Fiber and Helical Wires Vinyl Nitrile 150 psi 8
(Pack of
25)
SKU:41380A28 Item#: 41380A28
• Advantages:– Abrasion- and weather-resistant– Animal and vegetable oil resistant– Biodiesel compatible
• Agency Ratings: N/A• Fittings Certified:– U-Series (-16 and -20)– Z-Series (-16 and -20)– 430 U-Series (-16 through -32)– Inserted Hose Ends: Cam and Groove, Combination Nipples• Agency Approvals: N/A• Construction:– Inner Tube: Vinyl nitrile– Reinforcement: Fiber, two or four ply and helical wires– Cover: Vinyl nitrile• Color: Black• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:– Transfer of petroleum products– Transfer of crude oil, salt water, fresh water and slurries– Loading or unloading, pumping, suction or gravity flow discharge• Markets:– Petroleum/petrochemical industry– Paper/pulp industry– Oil exploration and drilling– Shipbuilding– Tank trucks– Railroad tank cars– Waste hauling
Frequently Bought Together
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Product Description
• Advantages:– Abrasion- and weather-resistant– Animal and vegetable oil resistant– Biodiesel compatible• Agency Ratings: N/A• Fittings Certified:– U-Series (-16 and -20)– Z-Series (-16 and -20)– 430 U-Series (-16 through -32)– Inserted Hose Ends: Cam and Groove, Combination Nipples• Agency Approvals: N/A• Construction:– Inner Tube: Vinyl nitrile– Reinforcement: Fiber, two or four ply and helical wires– Cover: Vinyl nitrile• Color: Black• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:– Transfer of petroleum products– Transfer of crude oil, salt water, fresh water and slurries– Loading or unloading, pumping, suction or gravity flow discharge• Markets:– Petroleum/petrochemical industry– Paper/pulp industry– Oil exploration and drilling– Shipbuilding– Tank trucks– Railroad tank cars– Waste hauling
Technical Specifications
| Item#: | 41380A28 |
|---|---|
| Manufacturer Model #: | H03638ABK-25 |
| Type | Petroleum Transfer |
| Manufacturer Series Number | H0363 |
| Manufacturer Series Name | Puma Petroleum Transfer |
| I.D. | 8 " |
| Dash Size | -128 |
| Working Pressure | 150 PSI |
| Minimum Bend Radius | 43 " |
| Inner Tube Material | Vinyl Nitrile |
| Hose Reinforcement | 4-Ply and Helical Wires |
| Hose Cover Material | Vinyl Nitrile |
| Fitting Series | Crimp: U Series, Z Series, 430U Series, Insert: Cam and Groove, Combination Nipple |
| Temperature | -40F to +180F |
| Color | Black |
| Size | -128X25 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | No |
