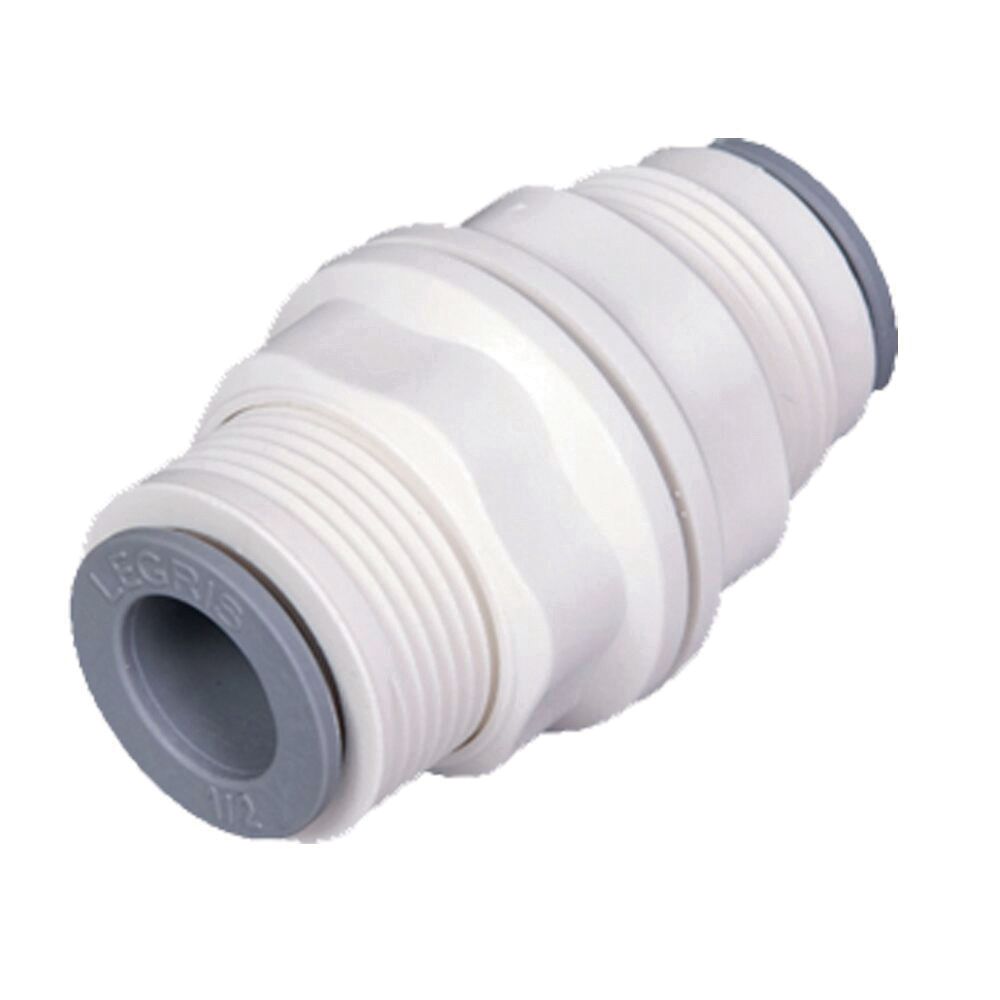

Push-to-Connect Bulkhead Union, Polyoxymethlene, 1/2 x 1/2", Tube x Tube, 232 PSI Working Pressure
(Pack of
5)
SKU:1262232 Item#: 1262232
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Nylon Metric Tubing 8mm OD x 25m Natural
$0.00
Couldn't load pickup availability
Nylon Metric Tubing 6mm OD x 25m Black
$0.00
Couldn't load pickup availability
Nylon Metric Tubing 6mm OD x 100' Natural
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Close Nipple Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 6 mm x 1/4"
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1262232 |
|---|---|
| Configuration | Bulkhead Union |
| Tube Size | 1/2 " |
| Material | Polyoxymethlene |
| Wrench Size | 1.41 " |
| Panel Hole Diameter | 1.00 " |
| Panel Thickness | .81 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
