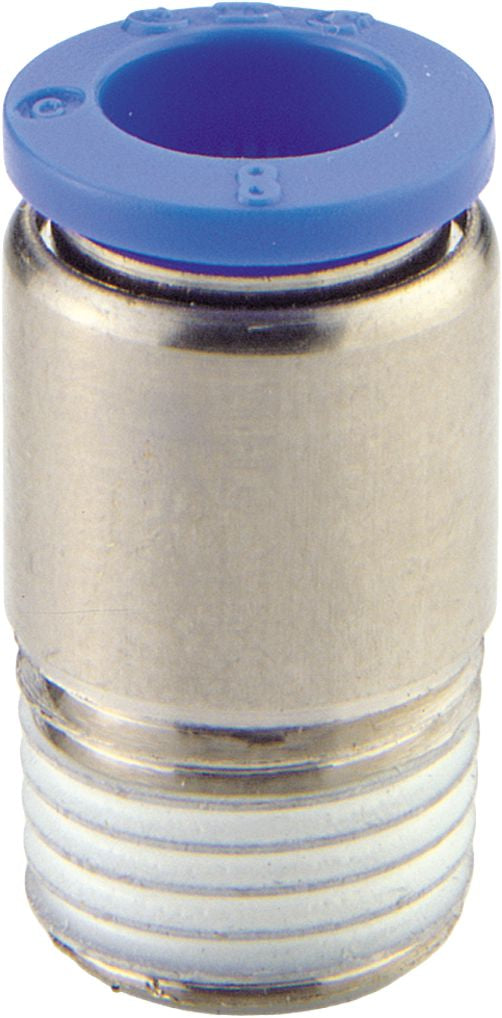

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4" x 10-32, Tube x Male UNF, 150 PSI Working Pressure
(Pack of
5)
SKU:55720 Item#: 55720
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
– Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
– Gripping Ring: 301 stainless steel
– Release Ring: Acetal plastic
– O-Ring: NBR (Buna-N)
Round body design. Recommended for use with compact high flow valves. Because of the miniature bodies, these fittings can be placed close together. The minimum distance between centers of the fittings is 10.5mm (0.41").
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32 x 1/8"
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Teflon Tape
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 1/2 to 29-32"
$0.00
Couldn't load pickup availability
Master O-Ring Assortment HNBR 33 Items 335Pcs
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 5/16" (8 mm) x M12x1.5
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 5/32" x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee Nylon 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
– Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
– Gripping Ring: 301 stainless steel
– Release Ring: Acetal plastic
– O-Ring: NBR (Buna-N)
Round body design. Recommended for use with compact high flow valves. Because of the miniature bodies, these fittings can be placed close together. The minimum distance between centers of the fittings is 10.5mm (0.41").
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 55720 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 1/4 " |
| Thread Size | 10-32 " |
| Thread Style | UNF |
| Material | Nickel-Plated Brass/PBT Resin |
| Internal Hex Size | 2 mm |
| Thread Length | .13 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
