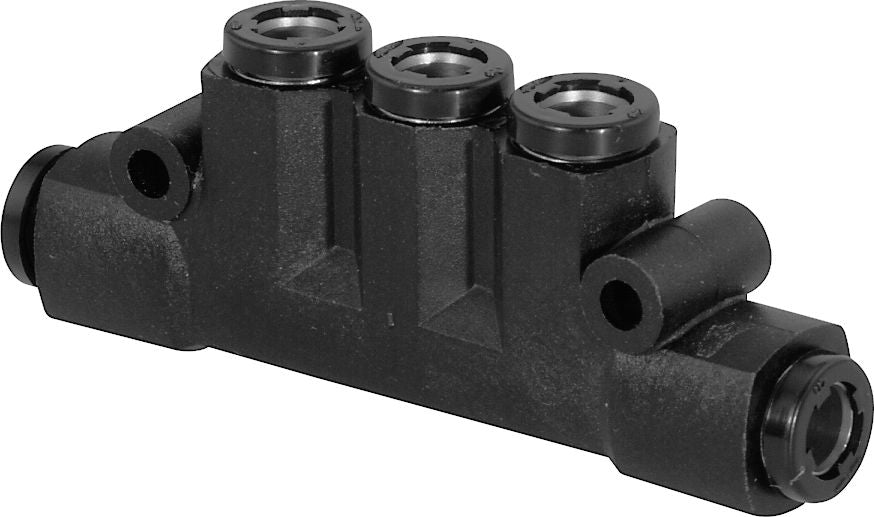

LF3000 Push-to-Connect Multiple Tee with Mounting Holes, Nylon, 10 x 10 x 6mm, Tube x Tube x Tube, 290PSI
(Pack of
2)
SKU:54396 Item#: 54396
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: glass-reinforced nylon 6.6
– Collar: nylon
– Gripping ring: stainless steel (all sizes except 3/16" tube)
– Collet: brass (3/16" tube size only)
– D seal: nitrile
– O-ring: nitrile
– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The Run is the first size and the Branches are the second size
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: glass-reinforced nylon 6.6
– Collar: nylon
– Gripping ring: stainless steel (all sizes except 3/16" tube)
– Collet: brass (3/16" tube size only)
– D seal: nitrile
– O-ring: nitrile
– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The Run is the first size and the Branches are the second size
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 54396 |
|---|---|
| Manufacturer Model #: | 3304 10 06 |
| Style | LF3000 |
| Configuration | Multiple Tee With Mounting Holes |
| Tube Size | 10 x 6 mm |
| Material | Nylon Body |
| Mounting Hole Diameter | 4.2 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
