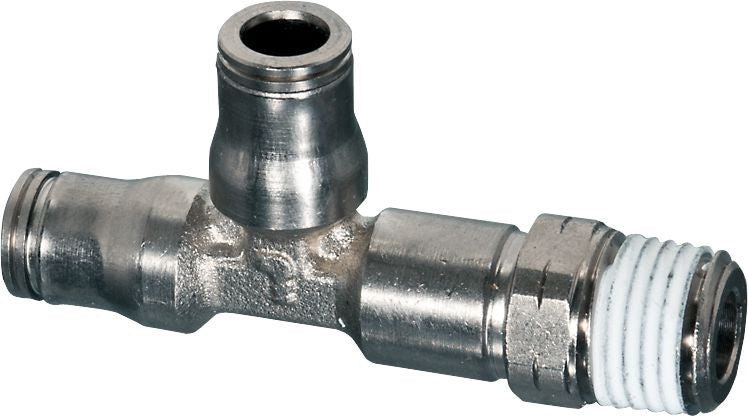

Push-to-Connect Run Tee, Nickel-Plated Brass, 1/4 x 1/4 x 1/4", Tube x Tube x Male NPT, 280 PSI Working Pressure
(Pack of
3)
SKU:28307 Item#: 28307
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Straight Union, Nickel-Plated Brass, 6 x 6mm
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/4"
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/8-27 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/8"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Product Description
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28307 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Male Run Tee |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Thread Length | 0.43 " |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.27 lb |
