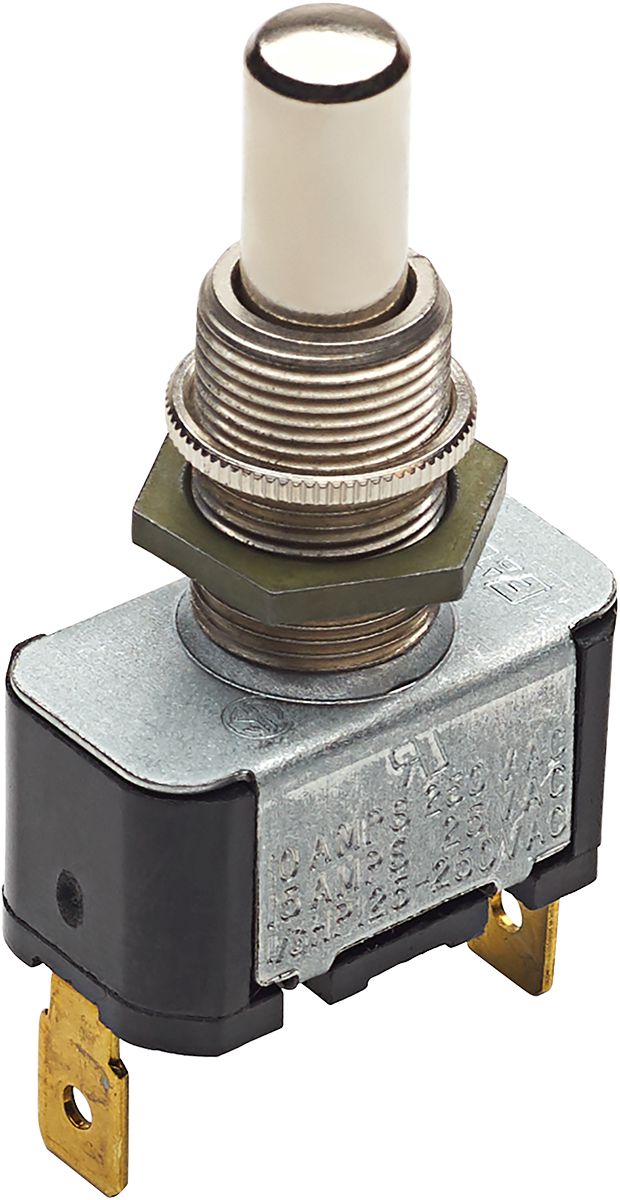

Push Button Switch, Single Pole Single Throw, 125/250 Volts AC, 2 Blade Terminal, Momentary On
(Pack of
5)
SKU:90373 Item#: 90373
• General-purpose
• AC rated
• For starters and other momentary control of DC electrical circuits
Frequently Bought Together
Miniature Incandescent Bulb 12V
Item#: P28626
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 32CP
Item#: P22162
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Item#: P61546
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
$0.00
Couldn't load pickup availability
Universal Pilot Indicator Light 12V 2x 16 AWG
Item#: 84481
$0.00
Couldn't load pickup availability
Disconnect Switch SPST 36VDC On/Off
Item#: 84476
$0.00
Couldn't load pickup availability
Universal Sealed Toggle Switch SPDT 10A 115V
Item#: 97687
$0.00
Couldn't load pickup availability
Toggle Switch SPST 16A at 125V/8A at 250V Off-On
Item#: 90384
$0.00
Couldn't load pickup availability
Rotary Switch Off-High/Low-Medium
Item#: 84487
$0.00
Couldn't load pickup availability
Sealed Toggle Switch DPDT 10A 125V
Item#: 97685
$0.00
Couldn't load pickup availability
Product Description
• General-purpose• AC rated
• For starters and other momentary control of DC electrical circuits
Technical Specifications
| Item#: | 90373 |
|---|---|
| Style | Heavy Duty Push-Button Switch |
| Pole | Single |
| Throw | Single |
| Terminal Connection | 2 Blades |
| Switch Positions | Momentary On |
| Mounting Stem Diameter | 15/32 " |
| Electrical Rating Amps at Given Voltage (AC or DC Current) | 15A at 125V AC 10A at 250V AC 1/3 hp at 125V or 250V AC |
| Material | Phenolic Resin |
| Approvals | UL,CSA |
| Type | Switches |
| UNSPSC #: | 39122200 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
