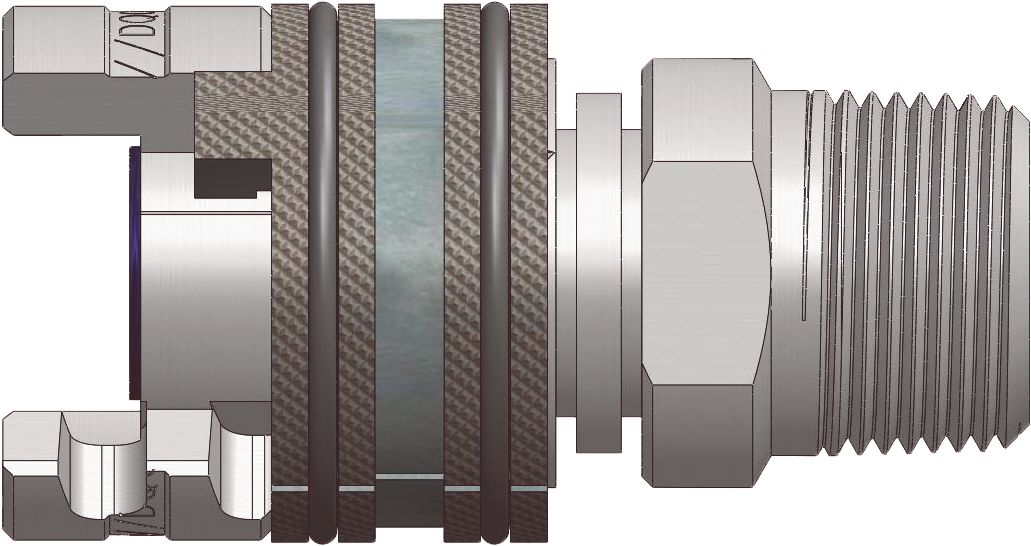

Industrial Quick Disconnect Coupler, Steel, Thor, 300PSI, Male NPTF, 1/2" Body Size, 1/2-14 Thread Size
(Pack of
1)
SKU:20934 Item#: 20934
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries.
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Locking Mechanism: Latch tabs
• Operating pressure: 300 PSI
• Coupled burst pressure: 4,800 PSI
• Flow: 250 CFM
• Locking mechanism: Latch fingers
• Dixon P-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Product Description
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries.• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Locking Mechanism: Latch tabs
• Operating pressure: 300 PSI
• Coupled burst pressure: 4,800 PSI
• Flow: 250 CFM
• Locking mechanism: Latch fingers
• Dixon P-Series
Technical Specifications
| Item#: | 20934 |
|---|---|
| Manufacturer Model #: | 4PM4 |
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Thor |
| Body Size | 1/2 " |
| Thread Style | Male NPTF |
| Thread Size | 1/2-14 |
| Working Pressure | 300 PSI |
| Material | Steel |
| Length | 2.98 " |
| Seal Material | Nitrile (Buna-N) |
| Hex Size | 7/8 " |
| Dixon Number | 4PM4 |
| Locking Mechanism | Latch Fingers |
| Flow | 255 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.51 lb |
