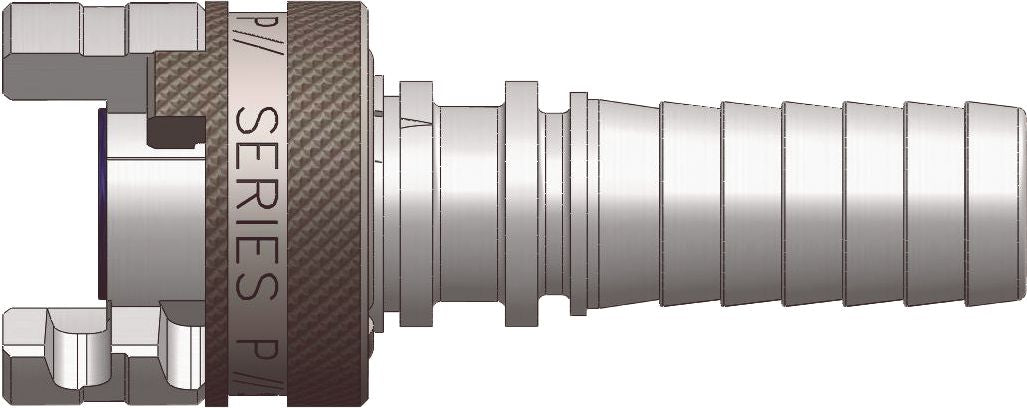

Quick Disconnect Coupler Steel 1/2 x 3/8"
(Pack of
1)
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific recommendations on individual hose pages)
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 4,800 PSI
• Flow: 250 CFM
• Locking Mechanism: Latch fingers
• Dixon P-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 3/8" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 3/16" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Instrumentation Elbow 90° 3/8" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Product Description
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific recommendations on individual hose pages)
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 4,800 PSI
• Flow: 250 CFM
• Locking Mechanism: Latch fingers
• Dixon P-Series
Technical Specifications
| Item#: | 20937 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Thor |
| Body Size | 1/2 " |
| Thread Style | Barb |
| Working Pressure | 300 PSI |
| Material | Steel |
| Hose I.D. | 3/8 " |
| Length | 3.53 " |
| Seal Material | Nitrile (Buna-N) |
| Dixon Number | 4PS3 |
| Hose Barb Size | 3/8 " |
| Locking Mechanism | Latch Fingers |
| Flow | 255 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
