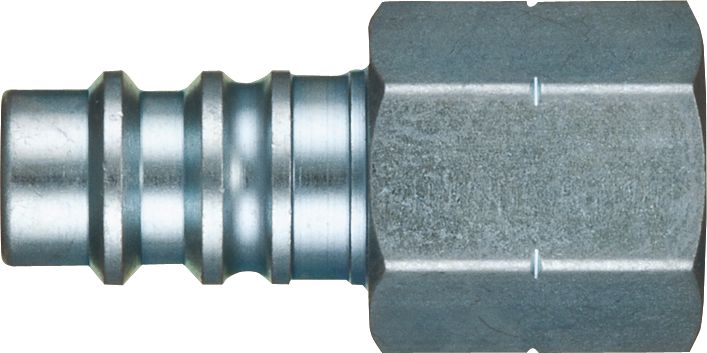

Heavy-Duty Quick Disconnect Plug, Steel, High Flow, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:KT15112 Item#: KT15112
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-42
Frequently Bought Together
Quick Disconnect Plug Steel 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 3/4"
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 23/32"
$0.00
Couldn't load pickup availability
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 1/2 to 29-32"
$0.00
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
Hose Hanger
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 11/16"
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15112 |
|---|---|
| Manufacturer Model #: | CJ2F2-LG |
| Description | Heavy-Duty Quick Disconnect |
| Type | Nipple |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Female NPT |
| Thread Size | 1/4-18 |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
