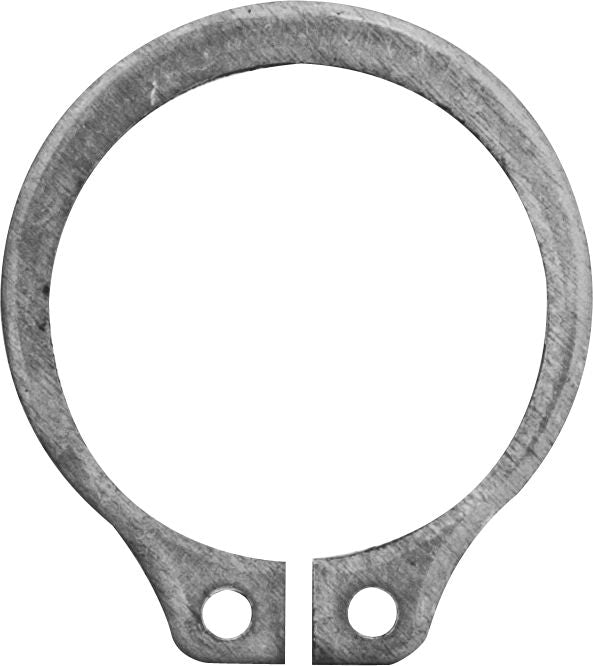

Retaining Ring, External, 18-8 Stainless Steel, Plain Finish, 11/16" Shaft Diameter
(Pack of
5)
SKU:59520 Item#: 59520
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Frequently Bought Together
Retaining Ring External Steel 15/16"
$0.00
Couldn't load pickup availability
Retaining Ring External Steel 1/2"
$0.00
Couldn't load pickup availability
Retaining Ring External Steel 1-1/4"
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Retaining Ring Assortment E-Type 355Pcs
$0.00
Couldn't load pickup availability
Retaining Ring External Steel 2-1/2"
$0.00
Couldn't load pickup availability
Retaining Ring External Steel 2-3/8"
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 59520 |
|---|---|
| Shaft Diameter | 11/16 " |
| Ring Clearance | 1.01 " |
| Ring Thickness | .042 " |
| Groove Diameter | .646 " |
| Groove Width | .046 " |
| Finish | Plain |
| Type | External Type Retaining Ring |
| Material | Stainless Steel |
| Size | 11/16 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
