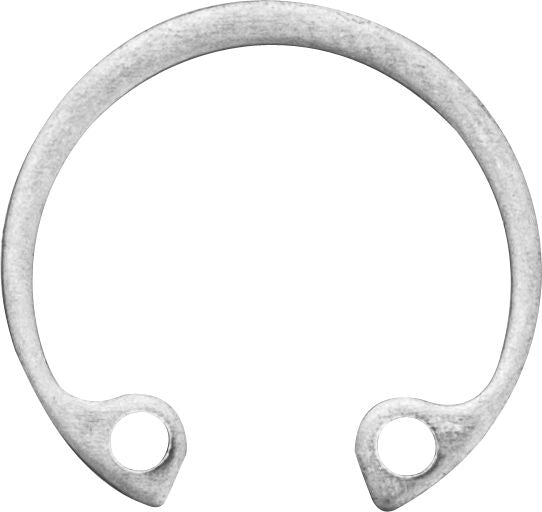

Retaining Ring, Internal, 18-8 Stainless Steel, Plain Finish, 5/8" Shaft Diameter
(Pack of
5)
SKU:59506 Item#: 59506
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
NOTE: See actual size Internal Type Retaining Ring illustrations.
Frequently Bought Together
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
$0.00
Couldn't load pickup availability
Retaining Ring Internal 18-8 Stainless Steel 20mm
$0.00
Couldn't load pickup availability
Retaining Ring Internal 18-8 Stainless Steel 24mm
$0.00
Couldn't load pickup availability
Retaining Ring Internal Steel 2-1/4"
$0.00
Couldn't load pickup availability
Retaining Ring External E-Type Steel 10.5mm
$0.00
Couldn't load pickup availability
Retaining Ring External Steel 8mm
$0.00
Couldn't load pickup availability
Retaining Ring External Steel 1/4"
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
NOTE: See actual size Internal Type Retaining Ring illustrations.
Technical Specifications
| Item#: | 59506 |
|---|---|
| Shaft Diameter | 5/8 " |
| Ring Clearance | .34 " |
| Ring Thickness | .035 " |
| Groove Diameter | .665 " |
| Groove Width | .039 " |
| Finish | Plain |
| Type | Internal Type Retaining Ring |
| Material | Stainless Steel |
| Size | 5/8 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
