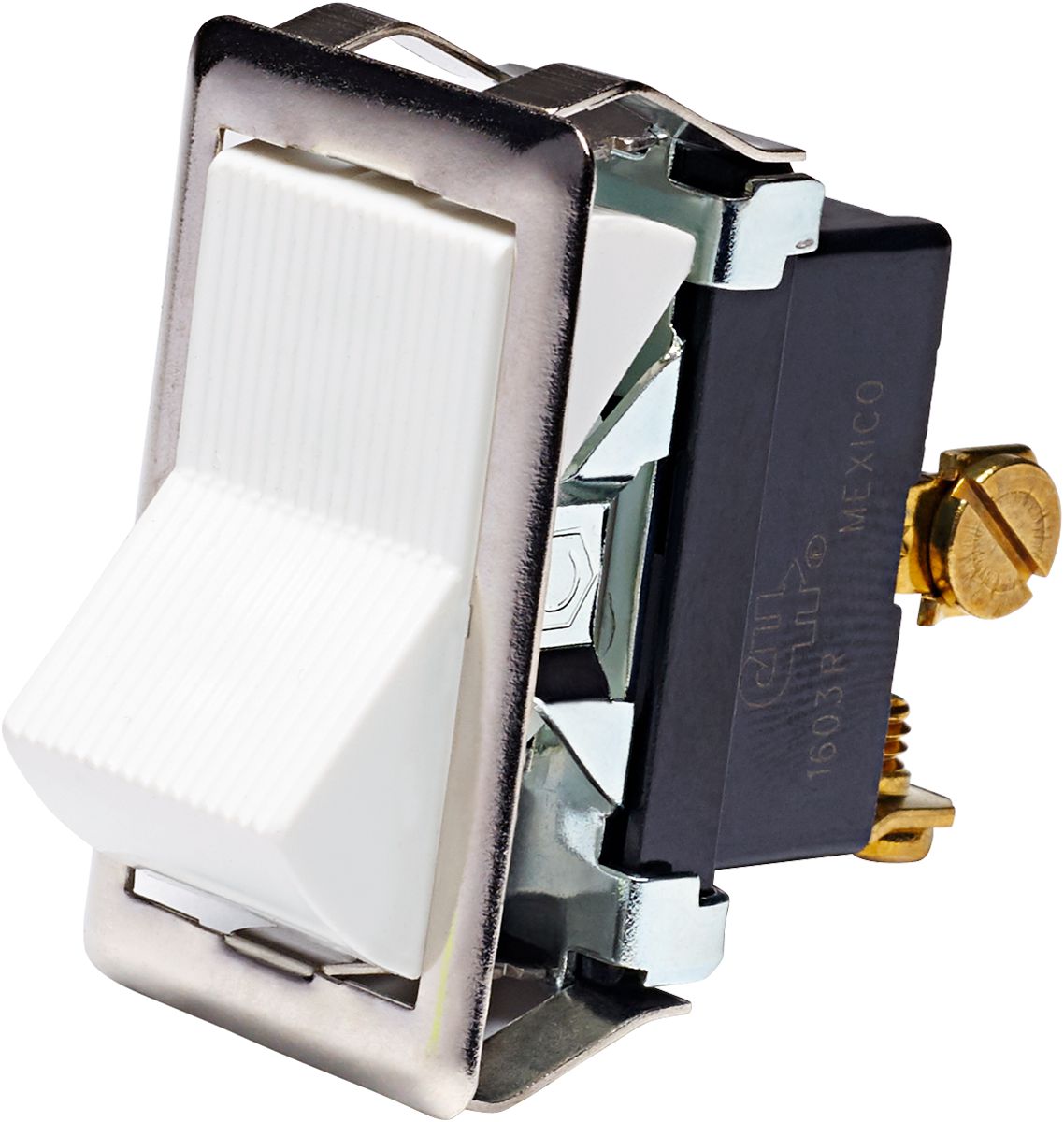

Rocker Switch, Single Pole Single Throw, 25 Amps, 12 Volts DC, 2 Screw Terminal, On-Off
(Pack of
2)
SKU:84477 Item#: 84477
• Snap-in mounting fits panels 0.04" to 0.1" thick
• Panel hole size 0.83" x 1.45" (21.08mm x 36.83mm)
Frequently Bought Together
Butt Connector 22 to 24 AWG Clear
Item#: KT13648
$0.00
Couldn't load pickup availability
Master Series Handheld Flashlight
Item#: 1635590
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Item#: P50510
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Item#: P13770
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
Item#: P18348
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Item#: 1420584
$0.00
Couldn't load pickup availability
Universal 2-Position Ignition Switch 6A 24V
Item#: 30218
$0.00
Couldn't load pickup availability
Toggle Switch Red Safety Cover
Item#: DY41120002
$0.00
Couldn't load pickup availability
Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Red LED Round, On-Off
Item#: DY41120043
$0.00
Couldn't load pickup availability
Universal Pilot Indicator Light 12V 2x 16 AWG
Item#: 84481
$0.00
Couldn't load pickup availability
Disconnect Switch SPST 36VDC On/Off
Item#: 84476
$0.00
Couldn't load pickup availability
Industrial Duty Locking Plug 2-Pole 3-Wire 20A
Item#: 25070
$0.00
Couldn't load pickup availability
Product Description
• Snap-in mounting fits panels 0.04" to 0.1" thick• Panel hole size 0.83" x 1.45" (21.08mm x 36.83mm)
Technical Specifications
| Item#: | 84477 |
|---|---|
| Style | Rocker Switches |
| Pole | Single |
| Throw | Single |
| Terminal Connection | 2 Screws |
| Switch Positions | On - Off |
| Electrical Rating Amps at Given Voltage (AC or DC Current) | 25A at 12V DC 15A at 125V AC; 10A at 250V AC |
| Panel Hole Diameter | 0.83 x 1.45 " |
| Actuator Color | Ivory |
| Type | Switches |
| UNSPSC #: | 39122200 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
