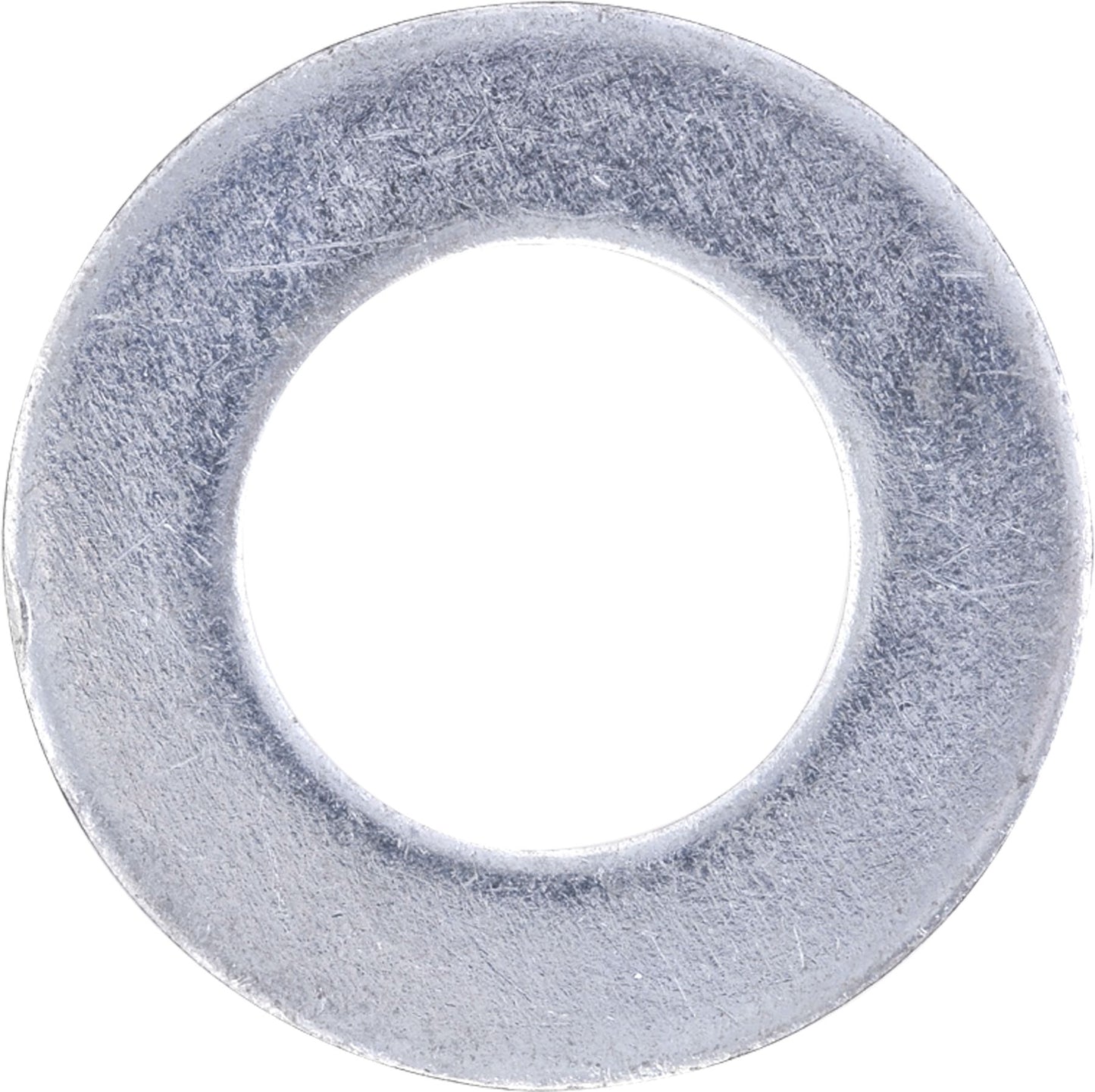

ASTM F436 SAE Structural Flat Washer, High Strength, Steel, Zinc Finish, 1-3/8" ID, 2-1/2" OD, 5/32" Thickness
(Pack of
25)
SKU:82038 Item#: 82038
• Medium carbon steel
• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Frequently Bought Together
Open End Rivet Dome Head Aluminum 3/16"
Item#: 489
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Item#: 55603
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M6
Item#: 80261
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Structural Flat Washer 1-1/16"
Item#: 1154953
$0.00
Couldn't load pickup availability
Structural Flat Washer 1-5/16"
Item#: 1155333
$0.00
Couldn't load pickup availability
Structural Flat Washer 2-1/4"
Item#: 1154400
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
Item#: 80264
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88436
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: FA88435
$0.00
Couldn't load pickup availability
Product Description
• Medium carbon steel• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Technical Specifications
| Item#: | 82038 |
|---|---|
| Nominal Size | 1-1/4 " |
| Finish | Bright Zinc |
| Material | Carbon Steel |
| I.D. | 1-3/8 " |
| O.D. | 2-1/2 " |
| Thickness | 5/32 " |
| Specifications | ASTM F436 |
| Minimum Thickness | 0.136 " |
| Maximum Thickness | 0.177 " |
| Type | Structural Flat Washer |
| UNSPSC #: | 31161807 |
| TAA Compliant: | Yes |
| Weight: | 3.35 lb |
