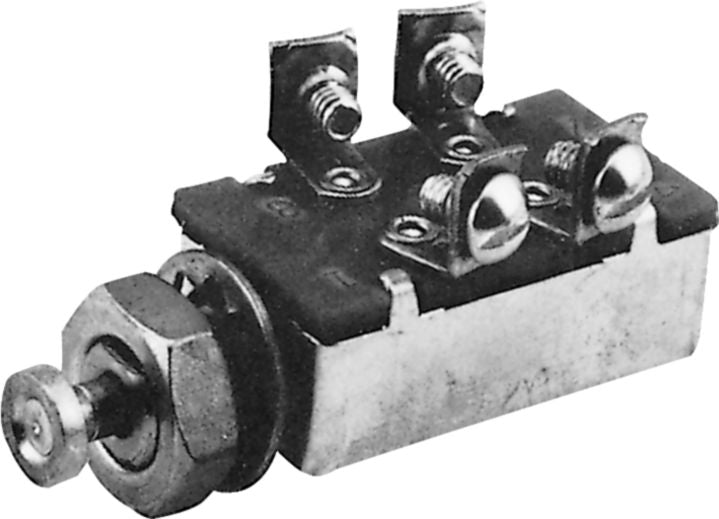

School Bus Door Switch, Double Pole Single Throw, 10 Amps, 12 Volts DC, 4 Screw Terminal, Momentary Off
(Pack of
1)
SKU:89109 Item#: 89109
• For stepwells and door controls on school buses
• Normally on
• Off when plunger is depressed; spring return to on position
• Energizes two circuits simultaneously
• For starters and other momentary control of DC electrical circuits
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Butt Connector 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Rechargeable Neck Light
$0.00
Couldn't load pickup availability
Butt Connector 22 to 24 AWG Clear
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Universal 3-Position Ignition Switch 6A 12V
$0.00
Couldn't load pickup availability
Universal 2-Position Ignition Switch 6A 24V
$0.00
Couldn't load pickup availability
Toggle Switch Red Safety Cover
$0.00
Couldn't load pickup availability
Thermoplastic Plug 2 Pole 3 Wire 15A 125V
$0.00
Couldn't load pickup availability
Industrial Duty Locking Plug 20A
$0.00
Couldn't load pickup availability
Universal Pilot Indicator Light 12V 2x 16 AWG
$0.00
Couldn't load pickup availability
Product Description
• For stepwells and door controls on school buses• Normally on
• Off when plunger is depressed; spring return to on position
• Energizes two circuits simultaneously
• For starters and other momentary control of DC electrical circuits
Technical Specifications
| Item#: | 89109 |
|---|---|
| Style | Universal School Bus Switch |
| Pole | Double |
| Throw | Single |
| Terminal Connection | 4 Screws |
| Switch Positions | Momentary Off |
| Mounting Stem Diameter | 7/16 " |
| Electrical Rating Amps at Given Voltage (AC or DC Current) | 10A at 12V DC 5A at 24V DC |
| Material | Die Cast |
| Type | Switches |
| UNSPSC #: | 39122200 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
