Home Electrical Sealed Toggle Switch SPST 15A 125V On-Off
Electrical

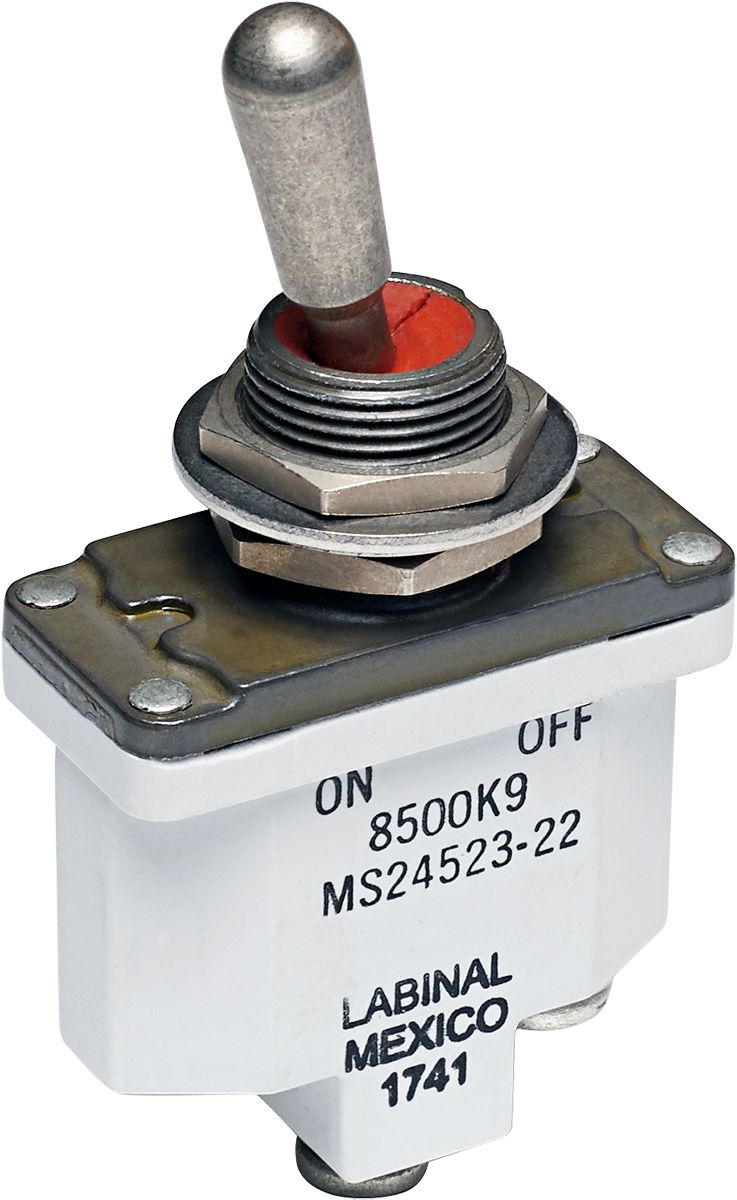

Sealed Toggle Switch SPST 15A 125V On-Off
(Pack of 1.0)

Kent Automotive

Mil Specification
MS 24543-22
• Completely sealed against dust, moisture and other contaminants
• Frame-to-body seal meets commercial hose-down tests
• Molded-in terminal insert protects termination
• 15/32" mounting stem dia.

Read More
Check availability inventory

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 2-86

Frequently Bought Together


Lithium Battery #2450 3V

Item#: 1435630
DV_ZoomOriginal_I_9007 01.jpg

Vinyl Electrical Tape Black 3/4" x 66', 10 Rolls Per Pack

Item#: 9007 01

Heat Shrink Tubing 20 to 16 AWG Black

Item#: P66657

Fender Bumper Shield Retainer 11/16"

Item#: P62445

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Item#: P86111

Sealed Toggle Switch DPDT 18A 125V On-Off-On

Item#: 1145997

Push Button Switch SPST 12VDC Momentary On

Item#: 84489

Rocker Switch SPST 20A 12V On-Amber/Off-Clear

Item#: 52795

Toggle Switch SPST 16A at 125V/8A at 250V Off-On

Item#: 90384

Pushbutton Switch SPST 125/250VAC Momentary On

Item#: 90373

Universal School Bus Switch SPST 36VDC

Item#: 13319

Product Description

Mil Specification
MS 24543-22
• Completely sealed against dust, moisture and other contaminants
• Frame-to-body seal meets commercial hose-down tests
• Molded-in terminal insert protects termination
• 15/32" mounting stem dia.

Technical Specifications

Item#: 97688
Style Environmentally Sealed Toggle Switches
Pole Single
Throw Single
Terminal Connection 2 Screws
Switch Positions On - Off
Mounting Stem Diameter 15/32 "
Electrical Rating Amps at Given Voltage (AC Current) 15A at 125V, 250V, 277V 1/2 hp at 125V; 1 hp at 250V, 277V
Approvals UL, CSA, MS24523-22
Type Switches
UNSPSC #: 39122200
TAA Compliant: Yes
Weight: 0.03 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
