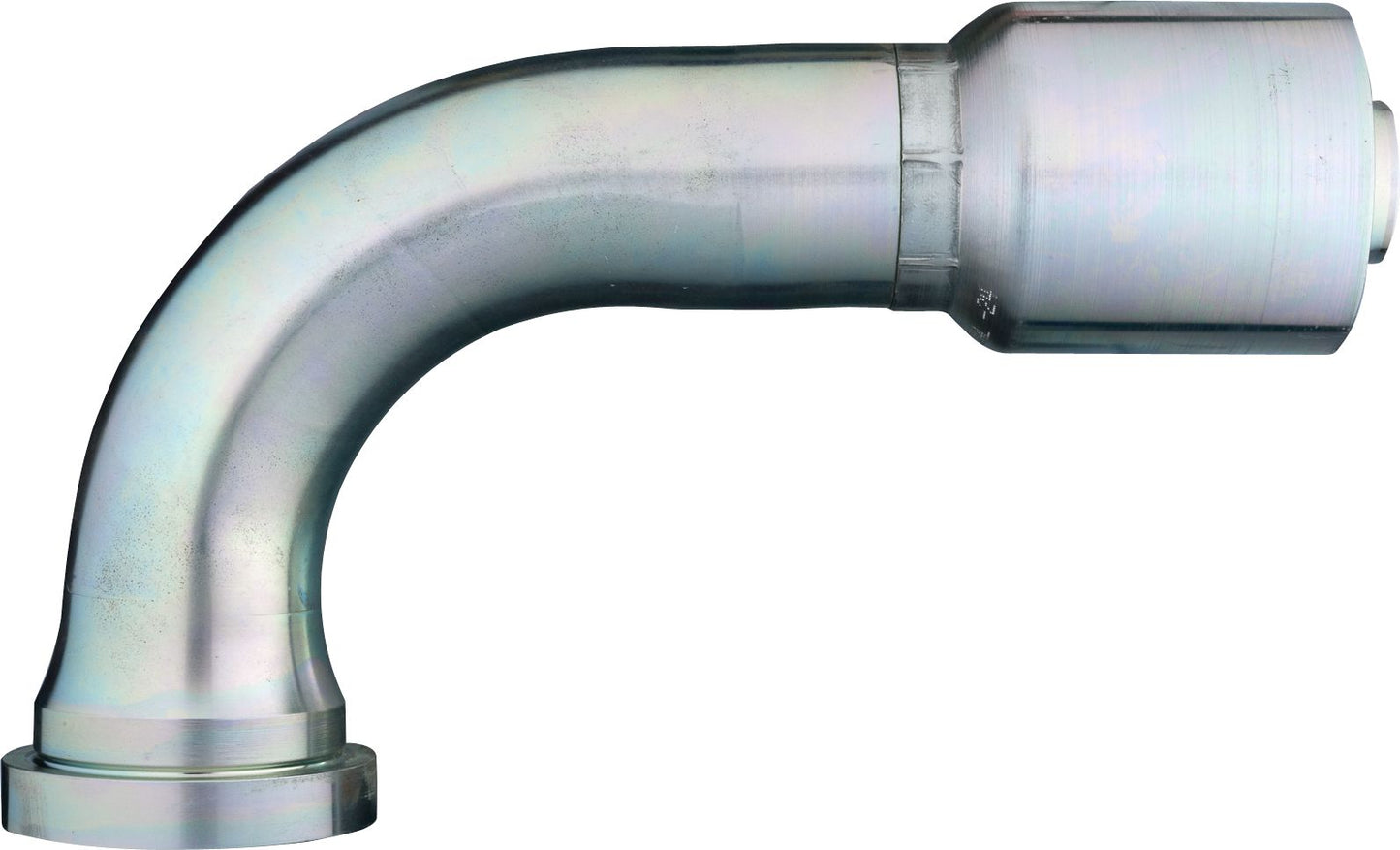

SP Series Split Flange Split Flange Caterpillar/Thick Flange 90° 1-1/2 (-24)x 3.13 (-32) Crimp-on End Fitting
(Pack of
1)
SKU:20350 Item#: 20350
SP Series Split Flange Split Flange Caterpillar/Thick Flange 90° 1-1/2 (-24)x 3.13 (-32) Crimp-on End Fitting
Read MoreFrequently Bought Together
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Product Description
SP Series Split Flange Split Flange Caterpillar/Thick Flange 90° 1-1/2 (-24)x 3.13 (-32) Crimp-on End FittingTechnical Specifications
| Item#: | 20350 |
|---|---|
| Manufacturer Model #: | 6SP24W-K92 |
| Manufacturer Series Number | SP Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Caterpillar/Thick Flange |
| Fitting End Type | Caterpillar/Thick Flange |
| Fitting Angle | 90 Degrees |
| Fitting Dimension B (Working End) | 3.13 (-32) |
| Flange Diameter | 3.13 " |
| Weatherhead No. | 6SP24W-K92 |
| Size | (-24)X(-32) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 8.5 lb |
