Standard One-Hole Lug, 350 MCM, Red, 1/2" Stud Size
(Pack of
3)
SKU:89511 Item#: 89511
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Frequently Bought Together
Master Series Handheld Flashlight
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Procell AA Alkaline Battery 1.5V
$0.00
Couldn't load pickup availability
Color Coded Motor Pigtail Connector 4 AWG Gray
$0.00
Couldn't load pickup availability
Long Barrel Two-Hole Lug 4 AWG Gray
$0.00
Couldn't load pickup availability

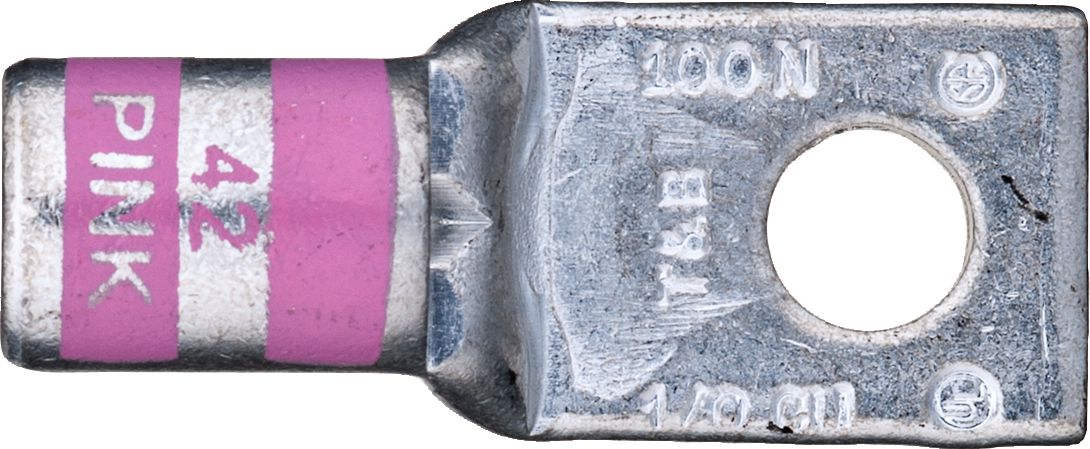

Standard One-Hole Lug 1/0 AWG Pink
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Scotchlok Instant Connector 18 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89511 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 350 MCM |
| Size Navy | 350 |
| Stud Bolt Size NEMA Drilling | 1/2 " |
| Color | Red |
| Installation Tool 89555 (No. of Crimps Required) | 2 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.69 lb |
