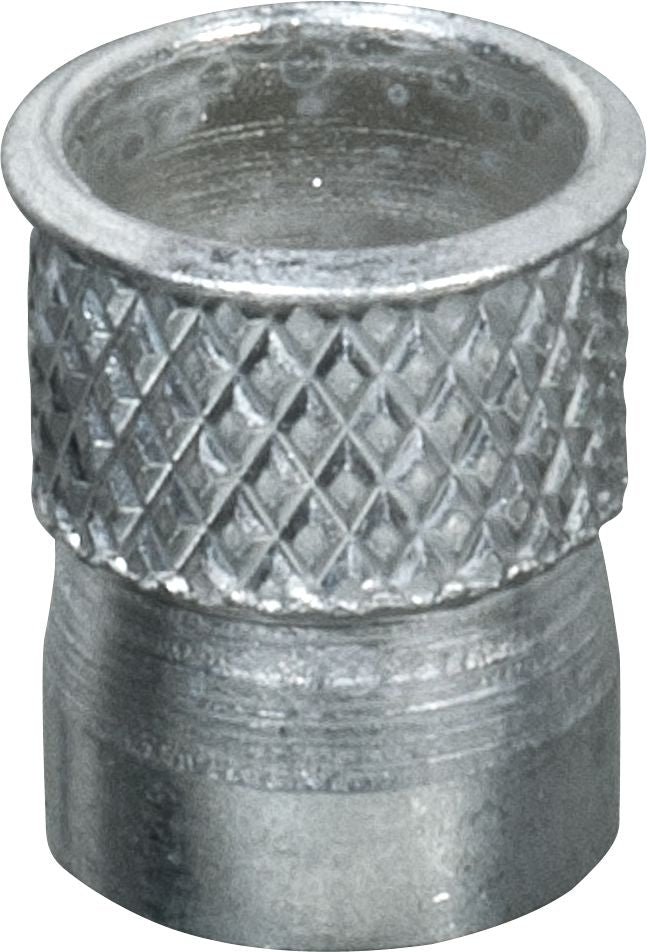

Standard Threaded Insert M10-1.5
(Pack of
25.0)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-94
Frequently Bought Together
Self-Drilling Screw Hex Head #8-18 x 1/2"
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 140Pcs
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Threaded Insert for Soft Material #8-32
Couldn't load pickup availability
Standard Threaded Insert M3-0.5
Couldn't load pickup availability
Threaded Insert for Soft Material 1/4-28
Couldn't load pickup availability
Rivet Nut Hand Tool Long Kit 1/4-20 and 1/4-28
Couldn't load pickup availability
Pneumatic Rivet Nut Installation Tool Right Angle
Couldn't load pickup availability
Pneumatic Rivet Nut Installation Tool In-Line
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85899 |
|---|---|
| Diameter | M10 |
| Thread Pitch | 1.5 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 14.28 mm |
| Pilot Drill Size | 9/16 " |
| Pilot Drill Number | 9740 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 14.94 mm |
| Body Diameter | 14.26 mm |
| Length | 18.92 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.44 lb |
