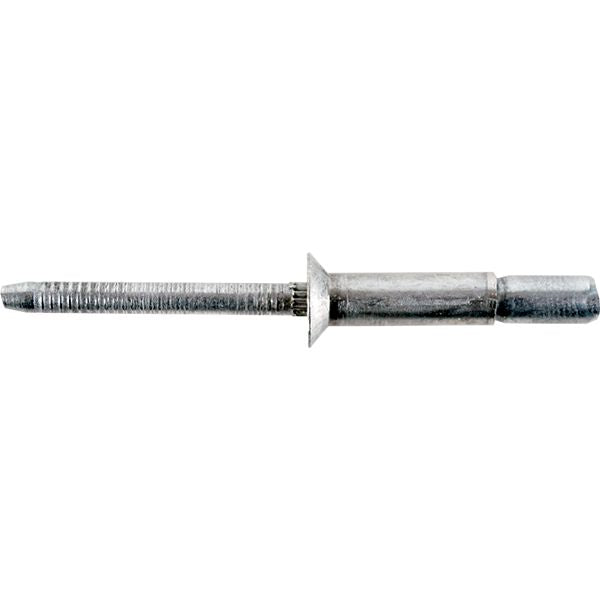

Structural Rivet, Internal Lock, 100° Countersunk Head, Aluminum, 1/4" Diameter, 0.415 to 0.725" Grip Range, 0.91" Body Length
(Pack of
50)
100° Countersunk Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-118
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Product Description
100° Countersunk Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
Technical Specifications
| Item#: | 1543653 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | 100° Countersunk Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/4 " |
| Grip Range | 0.415 – 0.725 " |
| Hole Size | 0.261 – 0.272 " |
| Drill Size | G |
| Head Diameter | 0.405 " |
| Head Height | 0.070 " |
| Body Length | 0.910 " |
| Shear Strength | 1,270 lb |
| Tensile Strength | 830 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.36 lb |
