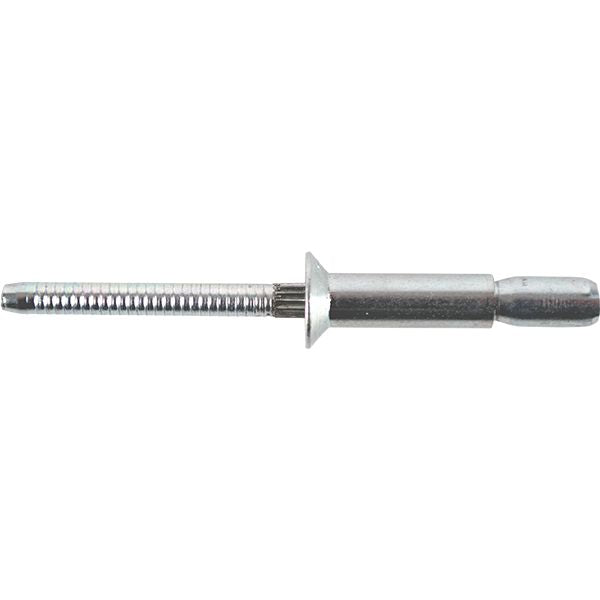

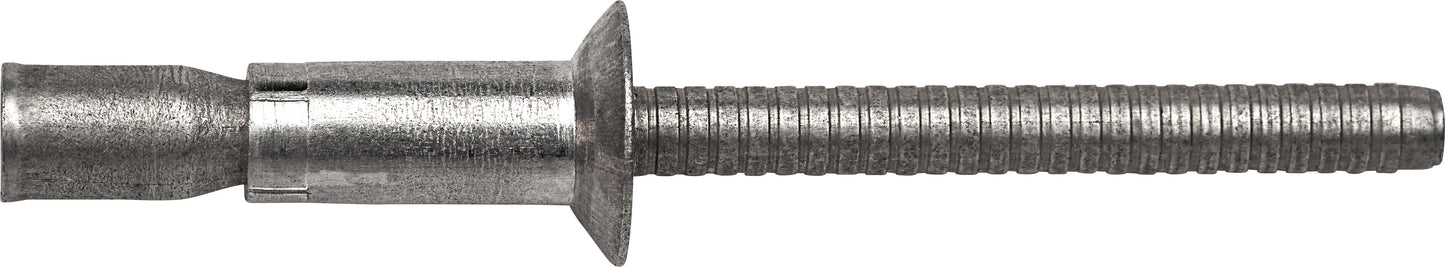

Tigerbolt® Structural Rivet, External Lock, 100° Countersunk Head, Aluminum, 3/16" Diameter, 0.125 to 0.437" Grip Range
(Pack of
50)
100° Countersunk Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-120
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Aluminum 3/16"
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Product Description
100° Countersunk Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543627 |
|---|---|
| Type | Structural – External Lock |
| Head Style | 100° Countersunk Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.125 – 0.437 " |
| Hole Size | 0.191 – 0.201 " |
| Drill Size | #10 |
| Head Diameter | 0.325 – 0.360 " |
| Head Height | 0.070 " |
| Body Length | 0.486 " |
| Shear Strength | 550 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.15 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
