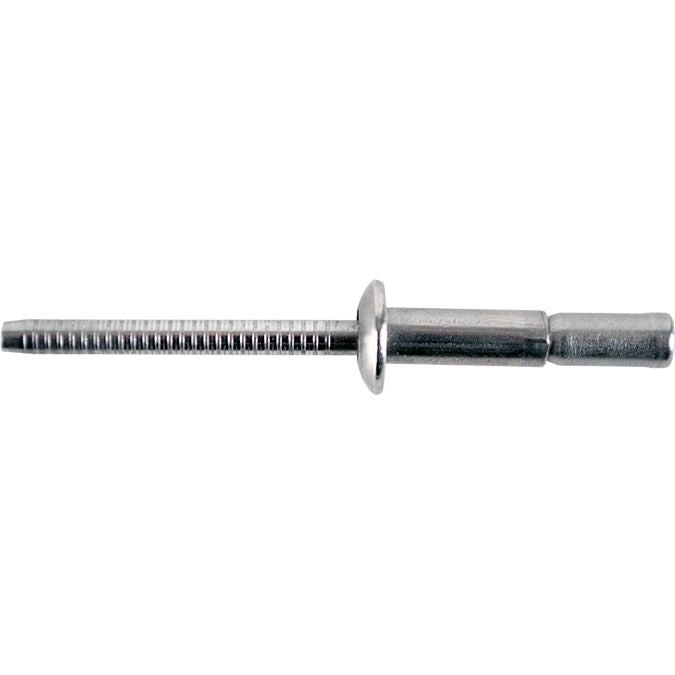

Structural Rivet, Internal Lock, Dome Head, Aluminum, 1/4" Diameter, 0.08 to 0.375" Grip Range, 0.56" Body Length
(Pack of
50)
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-118
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 25mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Open End Rivet Large Flange Head SS 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 3/16"
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 3/16"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 90483 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.375 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.560 " |
| Shear Strength | 1,270 lb |
| Tensile Strength | 830 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.5 lb |
