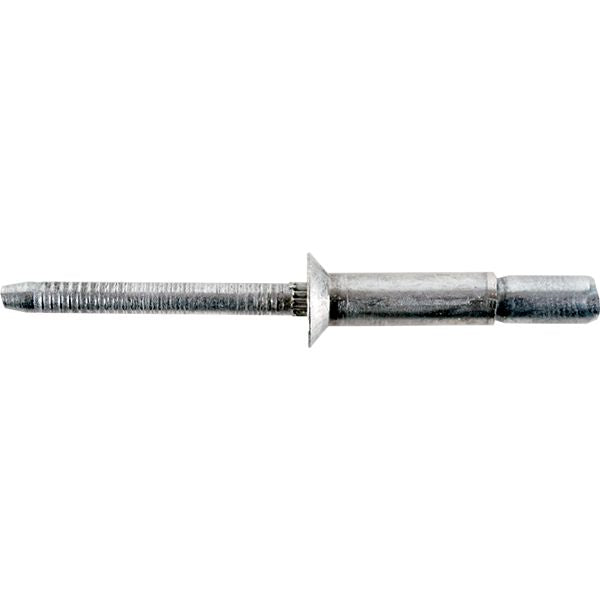

Structural Rivet, Internal Lock, 100° Countersunk Head, Aluminum, 3/16" Diameter, 0.125 to 0.331" Grip Range, 0.486" Body Length
(Pack of 50)

SKU:1543650 Item#: 1543650

Kent Automotive

100° Countersunk Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets

Check Availability

Quantity

Catalog page#: 11-118

Frequently Bought Together

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm

Lockbolt Collar Standard Flange Aluminum 3/16"

Open End Rivet Dome Head Steel 3/16"

Open End Rivet Dome Head Stainless Steel 3/16"

Solid Rivet Universal Head Hard Aluminum 3/16"

Molding Clip with Sealer Nylon White 11.5 x 21

Front Bumper Specialty Nut Steel M4.2-1.41

Front Rear Bumper Specialty Rivet 3.2mm

Tigerbolt® Structural Rivet External Lock 3/16"

Structural Rivet Internal Lock Aluminum 1/4"

Tigerbolt® Structural Rivet External Lock 1/4"

Product Description

100° Countersunk Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets

Technical Specifications

Item#:	1543650
Type	Structural – Internal Lock
Head Style	100° Countersunk Head
Material Body / Mandrel	Aluminum/Aluminum
Diameter	3/16 "
Grip Range	0.125 – 0.331 "
Hole Size	0.191 – 0.201 "
Drill Size	#10
Head Diameter	0.325 – 0.360 "
Head Height	0.080 "
Body Length	0.486 "
Shear Strength	550 lb
Tensile Strength	450 lb
UNSPSC #:	31162201
TAA Compliant:	No
Weight:	0.145 lb
