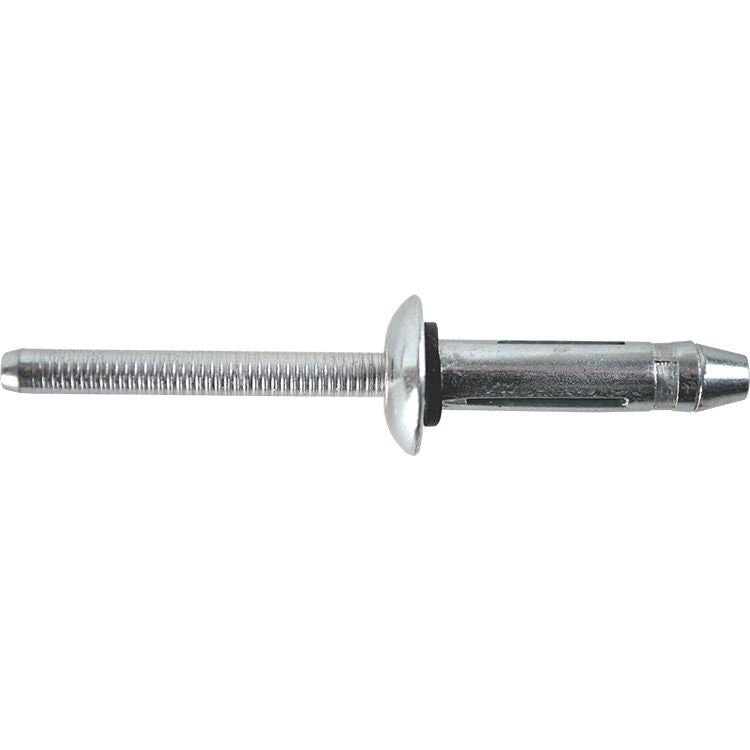

SupraTITE® Structural Tri-Fold Rivet, Rubber Washer, Dome Head, Steel, 1/4" Diameter, 0.125 to 0.375" Grip Range
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application.They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
• Rubber washer under the head provides additional sealing capabilities
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-117
Frequently Bought Together
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 40mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 45mm
Couldn't load pickup availability
Replacement Jaw for 491 Riveting Tool
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 1/4"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application.They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
• Rubber washer under the head provides additional sealing capabilities
Technical Specifications
| Item#: | 1543659 |
|---|---|
| Type | Structural Tri-Fold |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.125 – 0.375 " |
| Hole Size | 0.250 – 0.263 " |
| Drill Size | F |
| Head Diameter | 0.550 " |
| Head Height | 0.125 " |
| Body Length | 1.130 " |
| Shear Strength | 1,250 lb |
| Tensile Strength | 950 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 2.45 lb |
