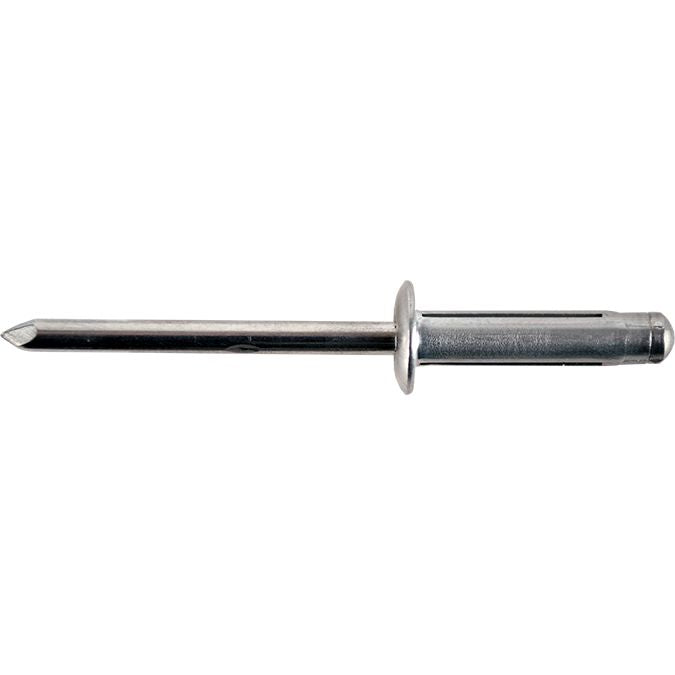

Tri-Fold Rivet, Dome Head, Aluminum, 3/16" Diameter, 0.157 to 0.472" Grip Range, 1.07" Body Length
(Pack of
100)
Dome Head
• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-116
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M8-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Solid Rivet Brazier Head Soft Aluminum 1/4"
Couldn't load pickup availability
Tigerbolt® Nosepiece for 1543731 Rivet Tool 3/16"
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Front License Plate to Bumper Cover Split Rivet
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 1/4"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543658 |
|---|---|
| Type | Tri-Fold |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.157 – 0.472 " |
| Hole Size | 0.196 – 0.209 " |
| Head Diameter | 0.386 " |
| Head Height | 0.062 " |
| Body Length | 1.070 " |
| Shear Strength | 202 lb |
| Tensile Strength | 269 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.45 lb |
