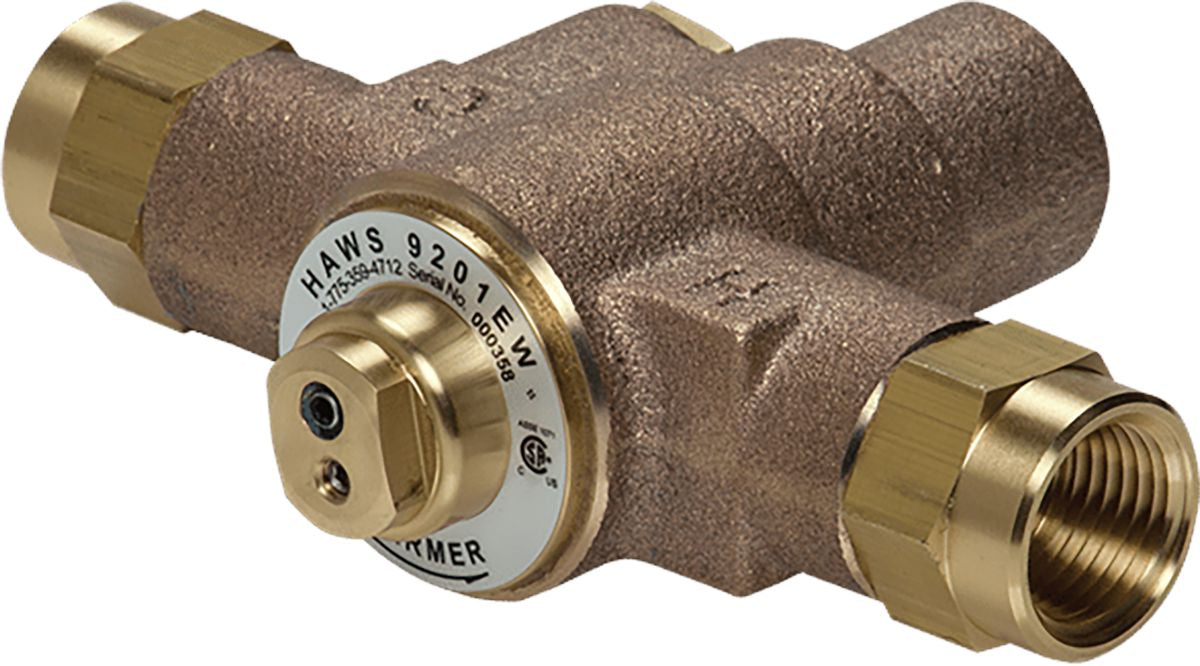

Thermostatic Mixing Valve, Brass, 12 gpm Flow Rate, 1/2" Inlet x 3/4" Outlet NPTF
(Pack of
1)
SKU:1648033 Item#: 1648033
Thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 20 gpm. The improved brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F. Maximum operating pressure: 125 psi. Temperature adjustment range 60 - 90° F. Maximum inlet temperature: 180° F. Recommended inlet temperature: 140° F. Minimum inlet temperature: 120° F Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).
• A flow rate of 1 to 31 gpm (3.8 to 117.3 L)
• Lowest internal pressure drop for this class of valve
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• No valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature set to 85° F (29° C).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
AXION® MSR Eye/face Wash Head SP65CTFP
$0.00
Couldn't load pickup availability
AXION® MSR Eye/face Wash Head SP65
$0.00
Couldn't load pickup availability
Test Tag, Green SP170
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1" x 50'
$0.00
Couldn't load pickup availability
Acid Brush 1/2 x 5-3/4"
$0.00
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 48mm x 50 mm
$0.00
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
$0.00
Couldn't load pickup availability
Adhesive-Back Shim Stock 1/8 x 5/8" x 50'
$0.00
Couldn't load pickup availability
Premium Latex Gloves, Natural, 8 Mil, Large, 1,000/Case
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Automotive Refinishing Tape 1-1/2" x 60 Yards
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 5/8" x 50'
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
$0.00
Couldn't load pickup availability
Product Description
Thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 20 gpm. The improved brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F. Maximum operating pressure: 125 psi. Temperature adjustment range 60 - 90° F. Maximum inlet temperature: 180° F. Recommended inlet temperature: 140° F. Minimum inlet temperature: 120° F Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).• A flow rate of 1 to 31 gpm (3.8 to 117.3 L)
• Lowest internal pressure drop for this class of valve
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• No valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature set to 85° F (29° C).
Technical Specifications
| Item#: | 1648033 |
|---|---|
| Manufacturer Model #: | 9201EFE |
| Type | Thermostatic Mixing Valve |
| Material | Brass |
| Width | 2-5/8 " |
| Flow Rate | 12 gal/min |
| Description | Thermostatic Mixing Valve |
| Standards | ASSE 1071, ANSI/ISEA Z358.1, CSA B125.3 |
| Height | 5-1/4 " |
| Style | Thermostatic Mixing Valve |
| Depth | 6-1/8 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181800 |
| TAA Compliant: | Yes |
