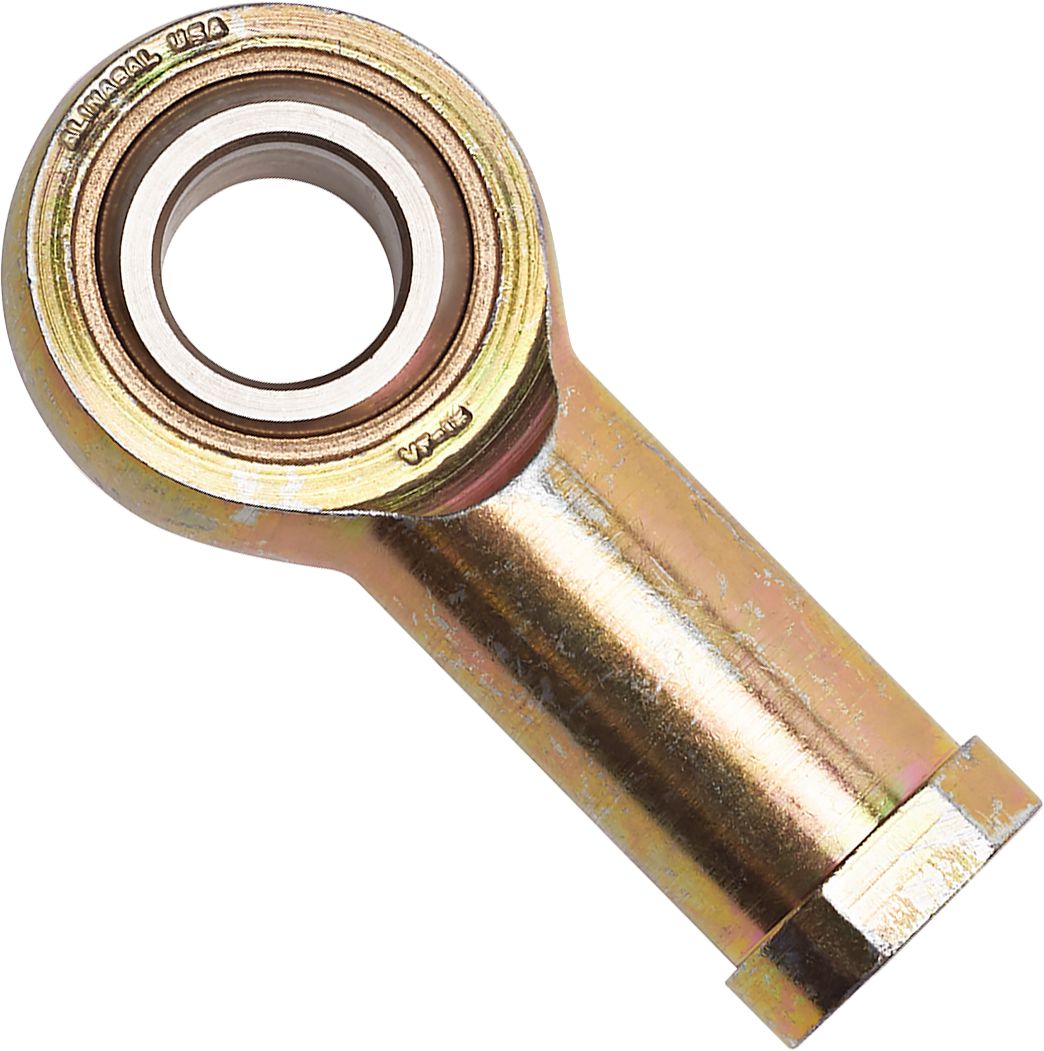

Throttle Ball Joint with Spherical Bearing 10-32
(Pack of
1.0)
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-22
Frequently Bought Together
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/8-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/4-28
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 7/16-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/8-24
Couldn't load pickup availability
Speedometer with Odometer Gauges 0 to 85MPH
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 93373 |
|---|---|
| Hole Diameter | .19 " |
| Length of Rod End to Center of Hole | 1.062 " |
| Female Thread | 10-32 |
| Ultimate (Radial) Static Load Rating | 1,800 lb |
| Thread | Right Hand Threads |
| Plating | Yes |
| A | .19 " |
| B | 1.062 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
