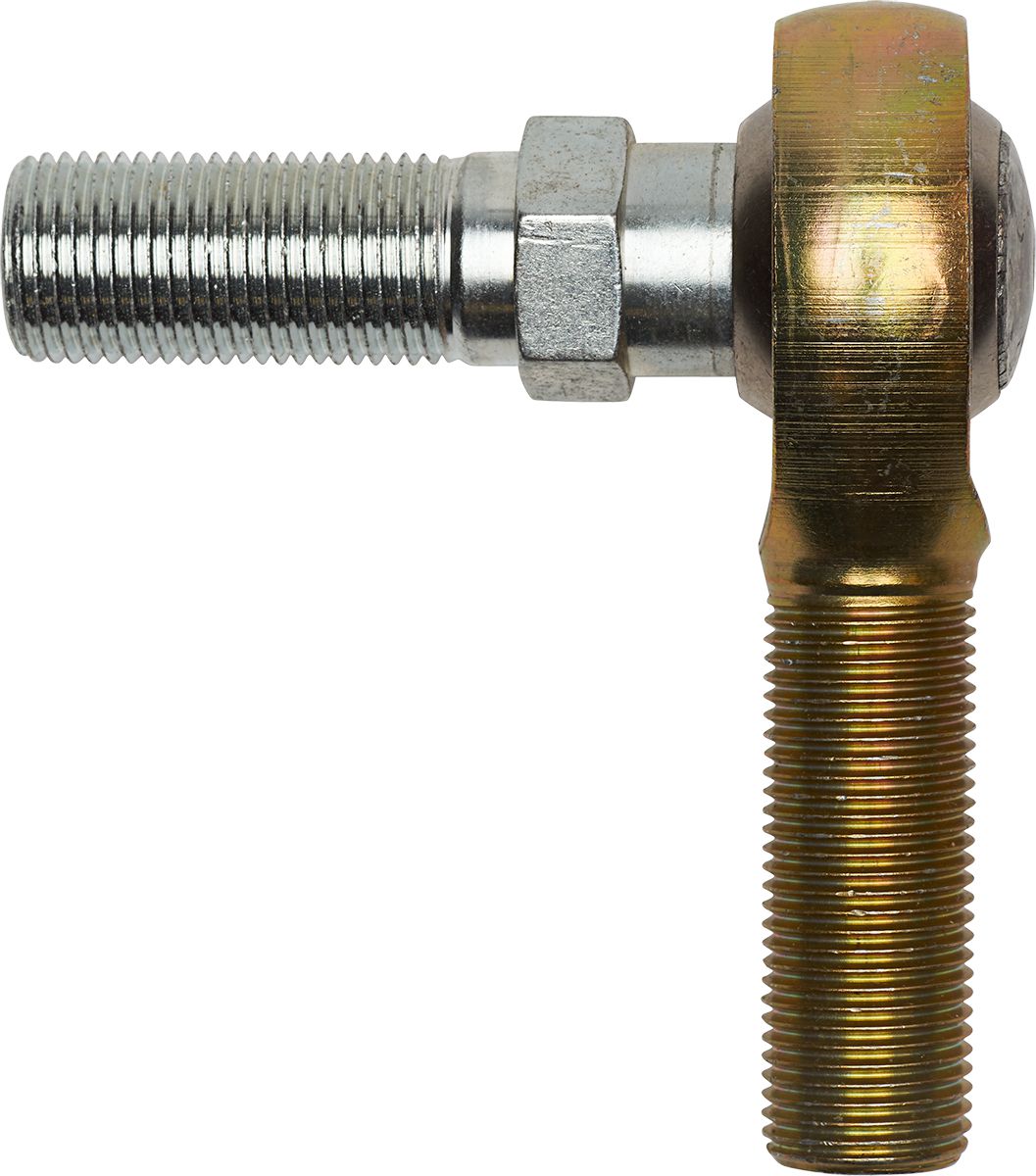

Throttle Ball Joint with Spherical Bearing - Male Rod End with Stud, 3/4-16 Male and Stud Threads, Right Hand Threads
(Pack of
1)
SKU:59569 Item#: 59569
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Frequently Bought Together
Front Fender Push-Type Retainer Nylon 18mm
Item#: KT13984
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Item#: P86117
$0.00
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 59569 |
|---|---|
| Length of Rod End to Center of Stud | 2.875 " |
| Stud Length | 1.812 " |
| Stud Length to Center of Rod End | 3 " |
| Male and Stud Threads | 3/4-16 |
| Static Load Rating | 6,000 lb |
| Stud Thread | 3/4-16 " |
| Thread | Right Hand Threads |
| Plating | Yes |
| A | 1.812 " |
| B | 3 " |
| C | 2.875 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 1.15 lb |
