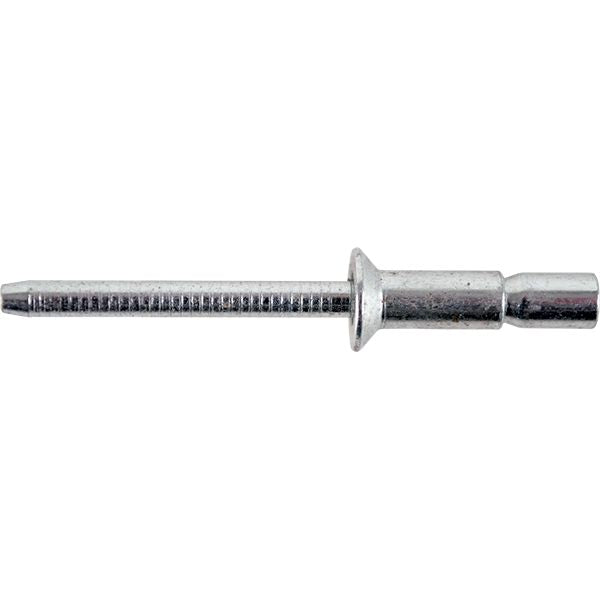

Tigerbolt® Structural Rivet, External Lock, 100° Countersunk Head, Steel, 1/4" Diameter, 0.125 to 0.5" Grip Range
(Pack of
50)
100° Countersunk Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-121
Frequently Bought Together
Self-Drilling Screw Hex Head #8-18 x 1/2"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
DIN 127B Standard Lock Washer M8
Couldn't load pickup availability
Tigerbolt® Nosepiece for 1543731 Rivet Tool 3/16"
Couldn't load pickup availability
HuckBolt® Hucktainer® Rivet Lockbolt 3/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Product Description
100° Countersunk Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543630 |
|---|---|
| Type | Structural – External Lock |
| Head Style | 100° Countersunk Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.125 – 0.500 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.420 " |
| Head Height | 0.070 " |
| Body Length | 0.547 " |
| Shear Strength | 2,675 lb |
| Tensile Strength | 2,360 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.9 lb |
