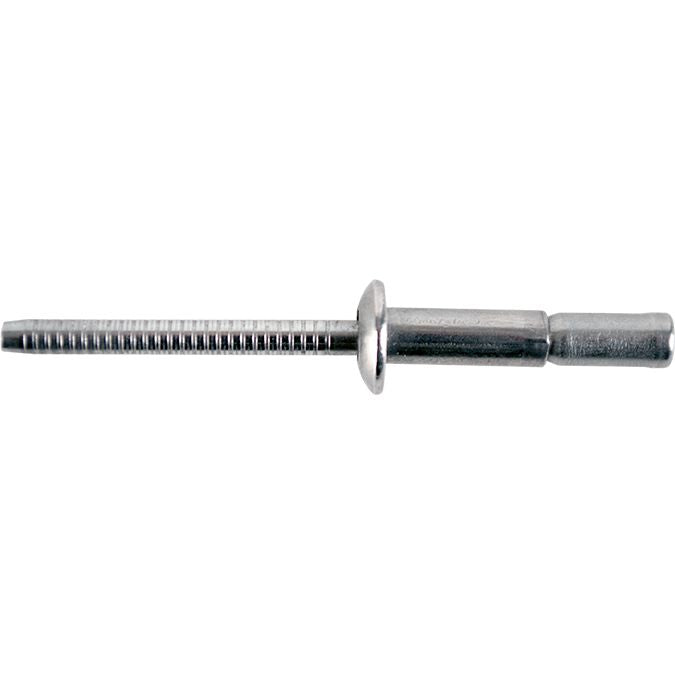

Tigerbolt® Structural Rivet, External Lock, Dome Head, Stainless Steel, 3/16" Diameter, 0.062 to 0.25" Grip Range
(Pack of
500)
SKU:1557940 Item#: 1557940
Dome Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-121
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
$0.00
Couldn't load pickup availability
Product Description
Dome Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1557940 |
|---|---|
| Manufacturer Model #: | FBF-64-TB |
| Type | Structural – External Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.250 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.400 " |
| Head Height | 0.090 " |
| Body Length | 0.375 " |
| Shear Strength | 1,438 lb |
| Tensile Strength | 1,146 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 4.5636 lb |
