Tite-Seal II Cord and Cable Grip 1/2" NPT
(Pack of
10.0)
• Weatherproof – Water-resistant seal helps protect connections from frequent washdowns

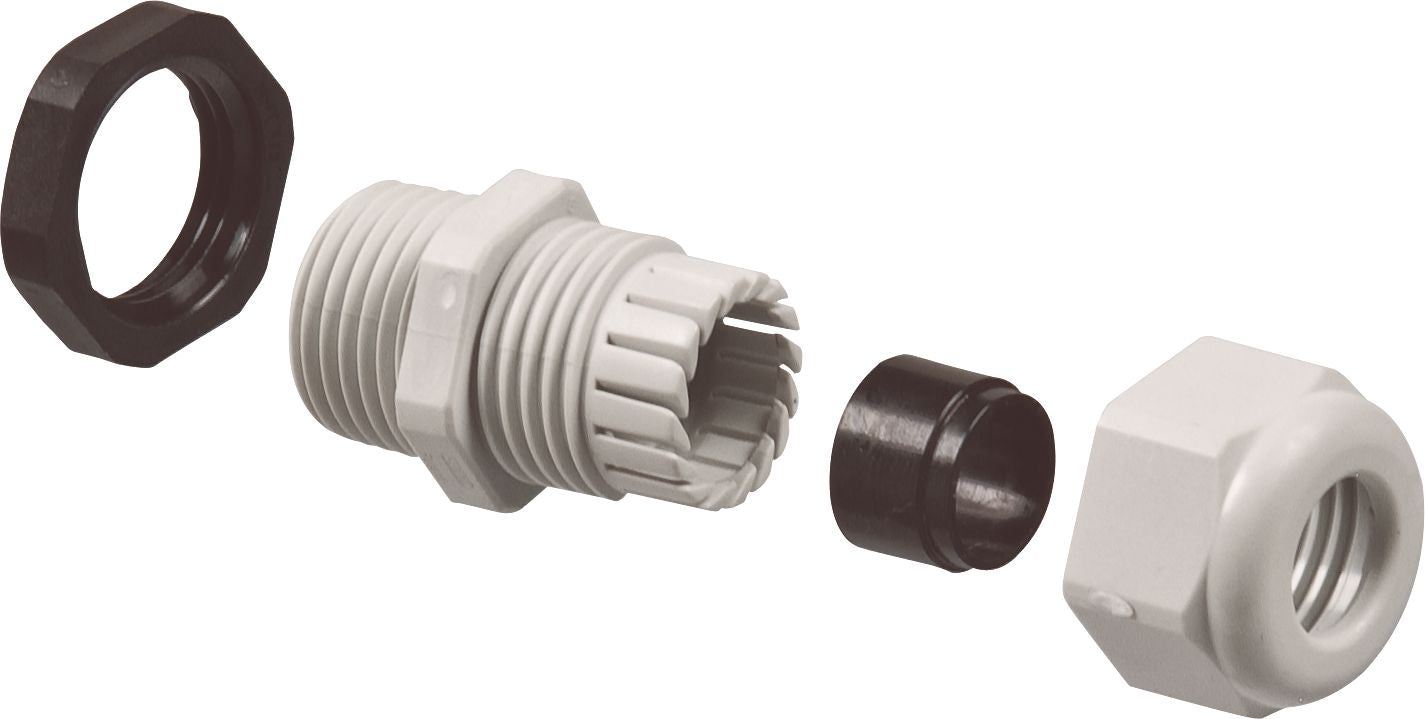

• Durable – Roton™ cap nut and body combines with neoprene seal for exceptional strength and durability

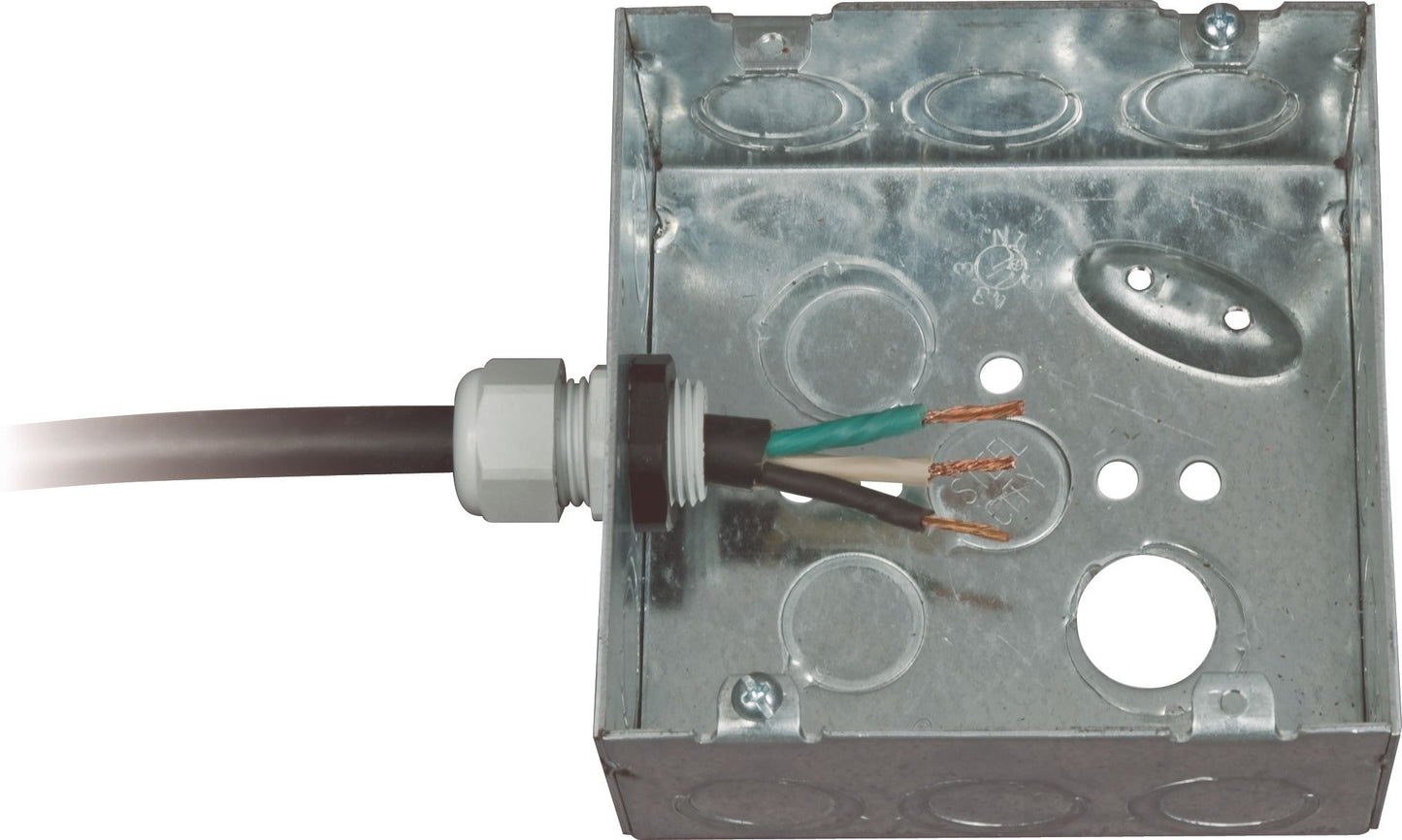

• Strong Grip – Internal segmented flange and ratchet lock hold wire or cable secure to panel box
• Strain Relief – Unique segmented flange provides exceptional strain and tension relief for the cable or cord
Technical Information
• Voltage rating: 600V maximum at 221°F (105°C)
• Temperature range: –40°F to +231°F (–40°C to +110°C)
Applications
• Enclosures
• T-stands
• Foot switches
• Conveyors
• Hoist and crane pendants
• Processing equipment
NOTE: Maximum voltage rating in USA 600V; in Canada 32V.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Nylon Cable Tie 5-1/2" Black
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip PG-21
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip 3/4" NPT
Couldn't load pickup availability
Tite-Seal Cord Grip PG-16
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 4" x 10'
Couldn't load pickup availability
Snap Bushing Nylon Black 1-5/16"
Couldn't load pickup availability
Product Description
• Weatherproof – Water-resistant seal helps protect connections from frequent washdowns• Durable – Roton™ cap nut and body combines with neoprene seal for exceptional strength and durability
• Strong Grip – Internal segmented flange and ratchet lock hold wire or cable secure to panel box
• Strain Relief – Unique segmented flange provides exceptional strain and tension relief for the cable or cord
Technical Information
• Voltage rating: 600V maximum at 221°F (105°C)
• Temperature range: –40°F to +231°F (–40°C to +110°C)
Applications
• Enclosures
• T-stands
• Foot switches
• Conveyors
• Hoist and crane pendants
• Processing equipment
NOTE: Maximum voltage rating in USA 600V; in Canada 32V.
Technical Specifications
| Item#: | P40615 |
|---|---|
| Wire Diameter | 0.240 - 0.470 " |
| Wire or Cable Size Accommodated | THW/AWM/MTW-8-2 AWG, THHN-6-1 AWG, SJO-18/2,3,4, 16/2,3,4, 14/2,3,4, 12/2,3,4 |
| Hole Diameter | 0.825 " |
| Knockout Size | 1/2 " |
| Threaded Hole Size | 1/2" NPT |
| Voltage Rating | 600 V |
| Temperature Range | -40 to 231 °F |
| Approvals | UL, CSA |
| Style | Tite-Seal II Cord and Cable Grips |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121719 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
