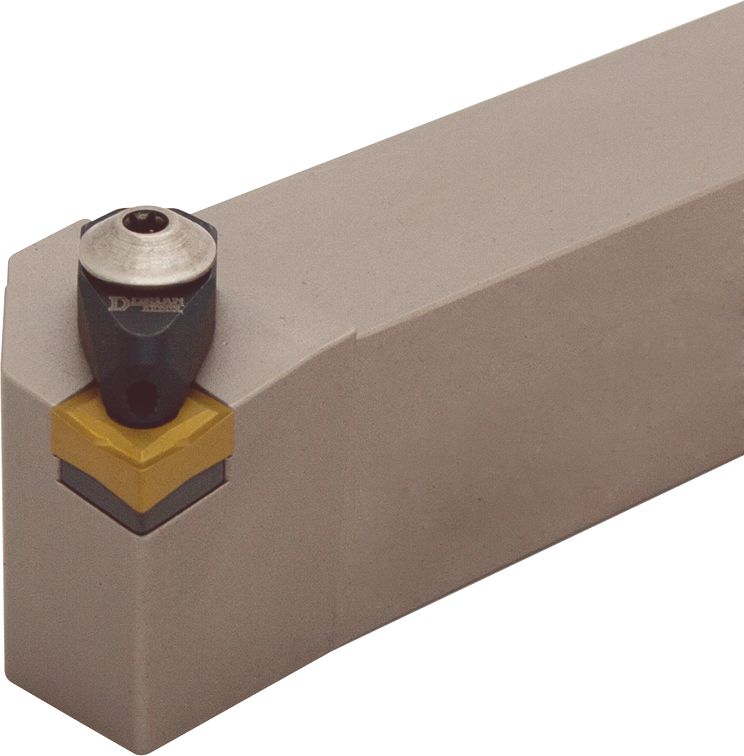

Jet-Stream™ Toolholder, RH, Style L, Neg 5°, For Negative 80° Insert
(Pack of
1)
SKU:1352877 Item#: 1352877
Holds CNMG Insert
• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Frequently Bought Together
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Product Description
Holds CNMG Insert• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Technical Specifications
| Item#: | 1352877 |
|---|---|
| Manufacturer Model #: | ADCLNR-24-5E |
| Type | Toolholder |
| Style | Style L |
| Direction | Right Hand |
| Coolant Feed | Yes |
| A / B | 1.50 " |
| C | 7.00 " |
| E | 1.375 " |
| F | 2.000 " |
| Insert | CNM |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
