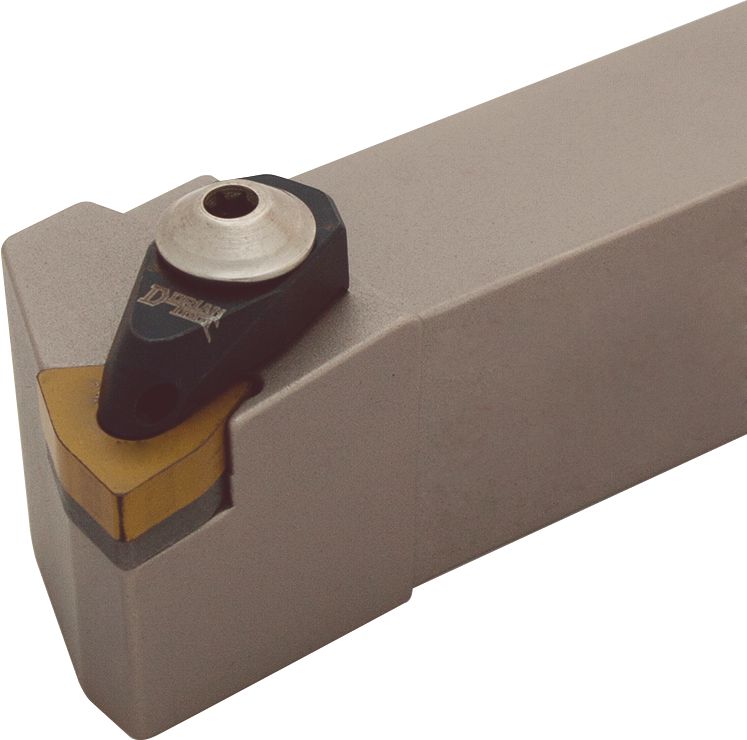

Jet-Stream™ Toolholder, RH, Style L, Neg 5°, For Negative 80° Insert
(Pack of
1)
SKU:1352940 Item#: 1352940
Holds WNMG Insert
• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Frequently Bought Together
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Product Description
Holds WNMG Insert• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Technical Specifications
| Item#: | 1352940 |
|---|---|
| Manufacturer Model #: | ADWLNR-12-4B |
| Type | Toolholder |
| Style | Style L |
| Direction | Right Hand |
| Coolant Feed | Yes |
| A / B | 0.75 " |
| C | 4.50 " |
| E | 1.250 " |
| F | 1.000 " |
| Insert | WNM |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
