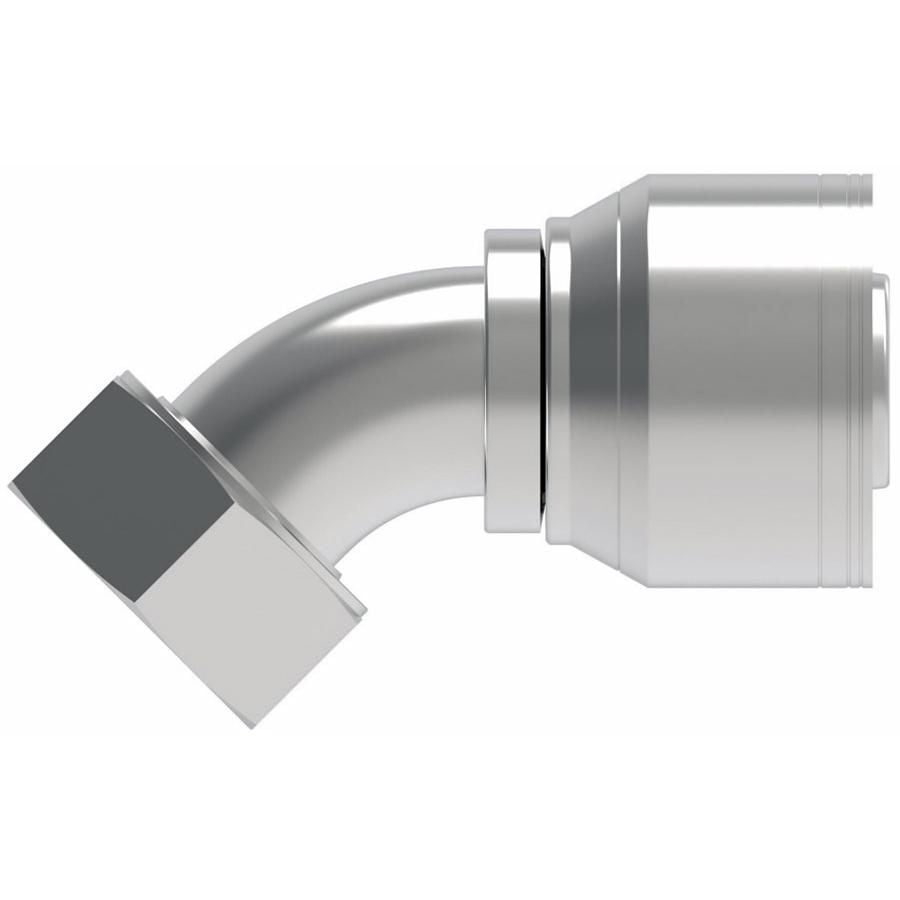

U Series Female Flat Face O-Ring Seal 45° 1 (-16)x 1-11/16-12 (-20) Crimp-on End Fitting
(Pack of
2)
SKU:22950 Item#: 22950
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.Technical Specifications
| Item#: | 22950 |
|---|---|
| Manufacturer Model #: | 16U-L80 |
| Manufacturer Series Number | U Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 45 Degrees |
| Fitting Dimension B (Working End) | 1-11/16-12 (-20) |
| Eaton Number | 16U-L80 |
| Connection Type A x B | Hose x |
| O.D. Tube Size | 1-1/4 |
| Size | (-16)X(-20) |
| Hex Size | 1-7/8 " |
| Material | Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
