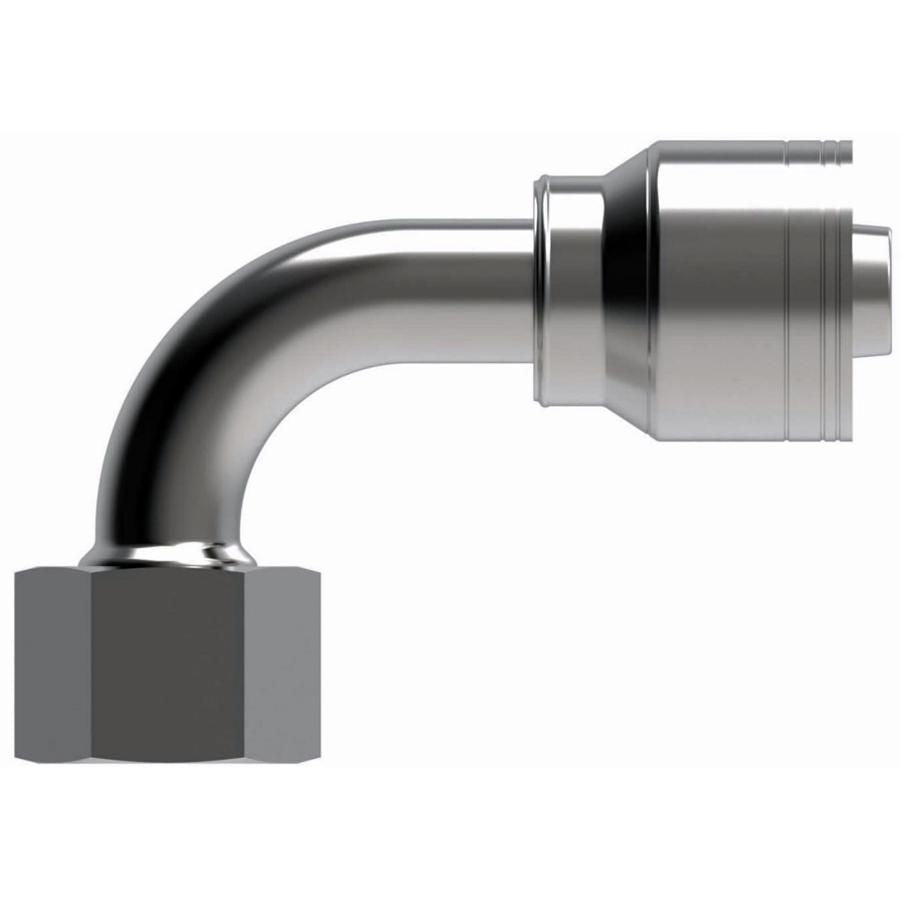

U Series Female DIN 24° Flare - s.Rh Heavy Pattern 90° 5/8 (-10)x M30 x 2.0 Crimp-on End Fitting
(Pack of
2)
SKU:22966 Item#: 22966
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.Technical Specifications
| Item#: | 22966 |
|---|---|
| Manufacturer Model #: | 10U-70E |
| Manufacturer Series Number | U Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - s.Rh. DKO Heavy Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | 90 Degrees |
| Fitting Dimension B (Working End) | M30 x 2.0 |
| Eaton Number | 10U-70E |
| Connection Type A x B | Hose x |
| O.D. Tube Size | 20 |
| Size | (-10)XM30x1.5 |
| Hex Size | 1-7/16 " |
| Material | Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
