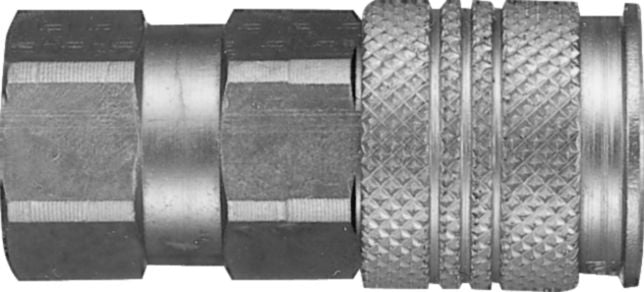

Universal Air Coupler, Brass, 125PSI, Female NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:KT15120 Item#: KT15120

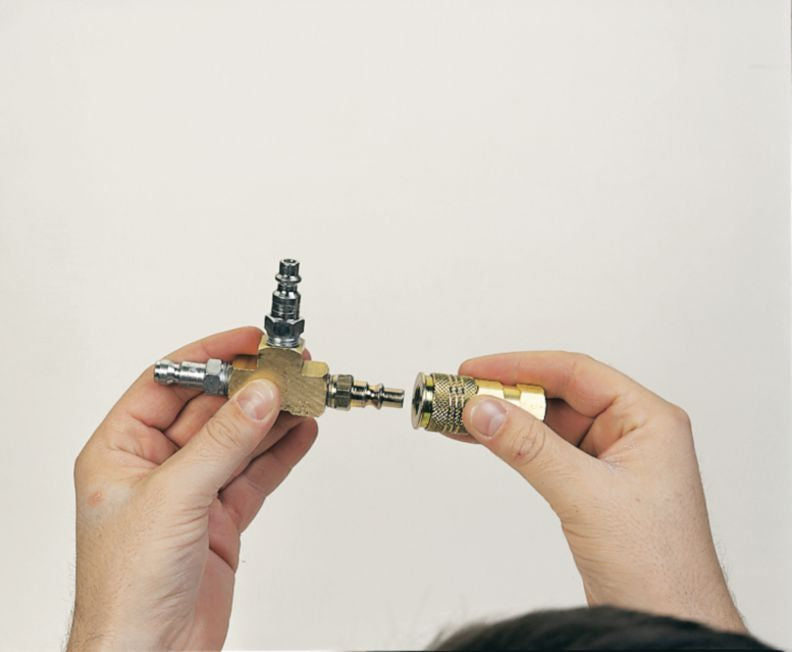

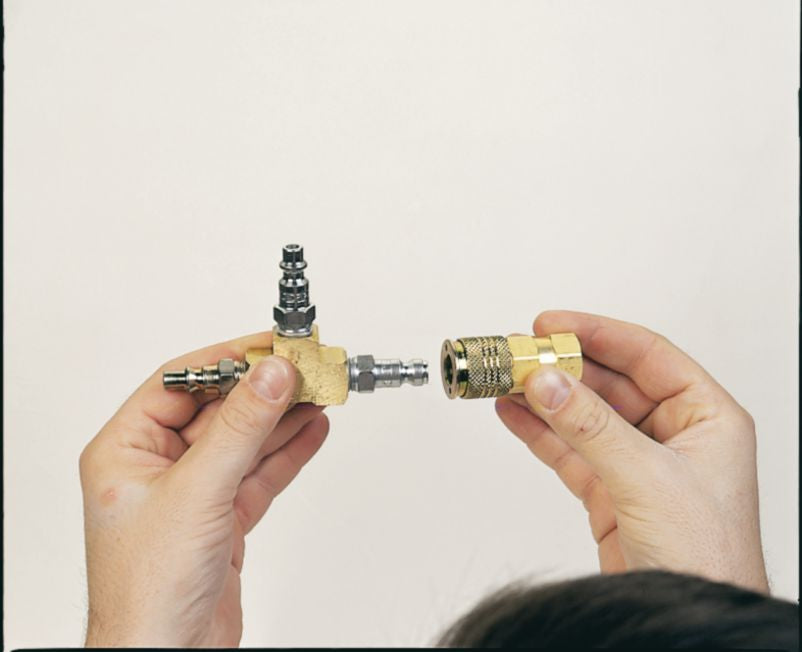

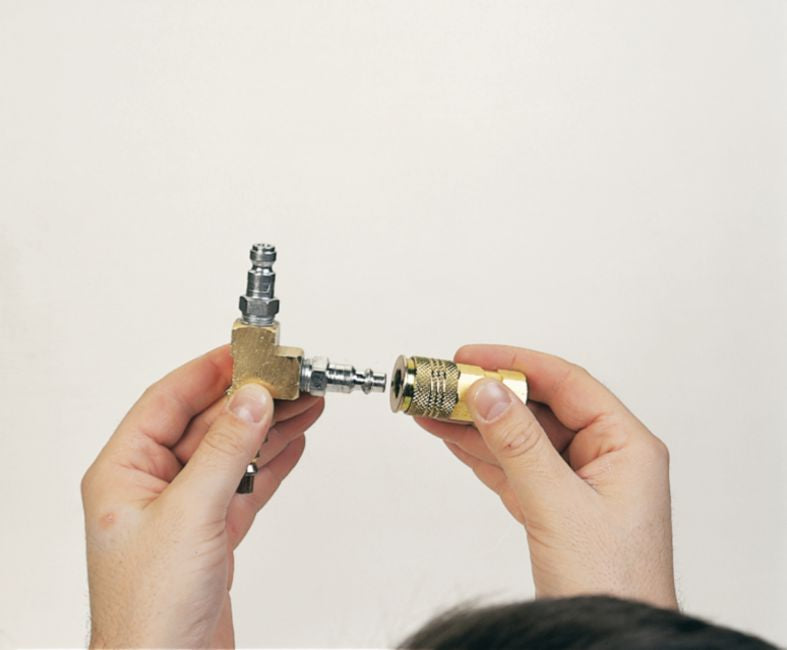

Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.
• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-37
Frequently Bought Together
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Product Description
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Technical Specifications
| Item#: | KT15120 |
|---|---|
| Description | Universal |
| Type | Coupler |
| Style | Universal |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 3/8-18 |
| Working Pressure | 125 PSI |
| Material | Brass |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.26 lb |
