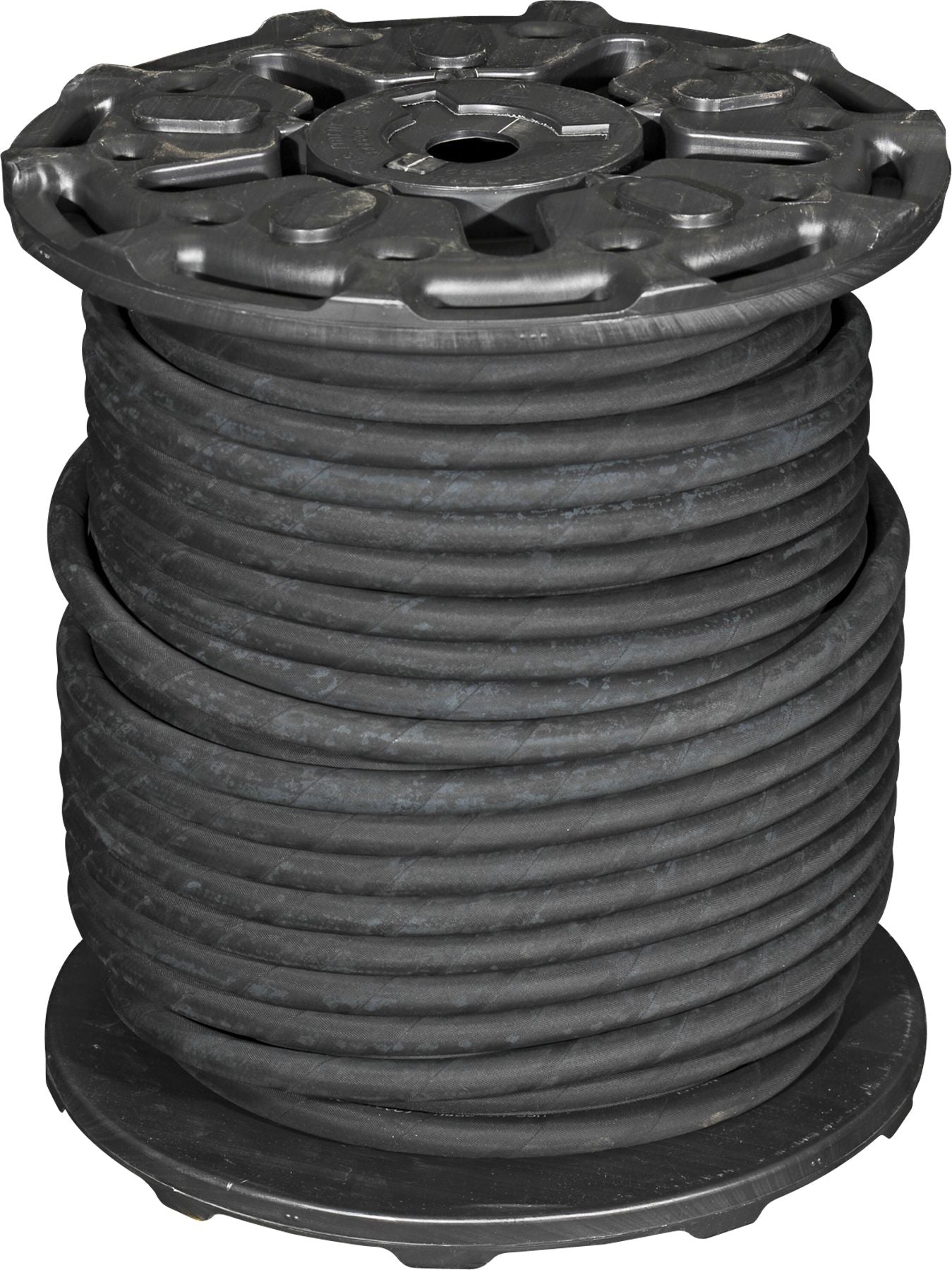

Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 3/8" ID, 3/4" OD, 250' Length, 4000PSI, SAE 100R2
(Pack of
250)
SKU:10391 Item#: 10391
Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 3/8" ID, 3/4" OD, 250' Length, 4000PSI, SAE 100R2
Read MoreCouldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.43" x 50'
$0.00
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.75" x 50'
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 300 Foot
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Product Description
Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 3/8" ID, 3/4" OD, 250' Length, 4000PSI, SAE 100R2Technical Specifications
| Item#: | 10391 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2 |
| Industry Rating | MSHA Accepted, Marine Application J1942/1 Fuel and Hydraulic, ABS1 |
| Manufacturer Series Number | H425 |
| Manufacturer Series Name | Weatherhead Continuous Length |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 3/4 " |
| Working Pressure | 4000 PSI |
| Burst Pressure | 16000 PSI |
| Fitting Series | Crimp: Z Series, U Series, 430U Series, S Series, Field Attachable: 425N Series |
| Bend Radius | 5 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Note | Continuous Length Reel |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 99.5 lb |
