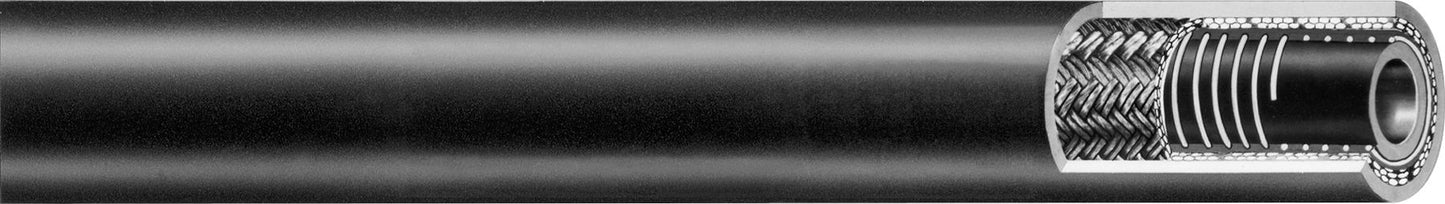

Weatherhead Suction/Return Line Hose 1-1/4" Black
(Pack of
50)
• Agency Ratings: SAE 100R4AT
• Fittings Certified: Z-Series
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service, ABS
• Construction:
– Inner Tube: CPE
– Reinforcement: One helical cable wire between two textile layers plus one fabric braid
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +275°F (–40°C to +135°C)
• Application Note: Hydraulic suction hose
Consists of no more than two pieces totaling 50 feet (±10%)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Spiraflex Aggie PVC Suction Hose 1-1/4" (-20)
Couldn't load pickup availability
Layflat PVC Discharge Hose Assembly 2" x 50' Blue
Couldn't load pickup availability
Layflat PVC Discharge Hose Assembly 3" x 50' Blue
Couldn't load pickup availability
Rubber Air Hose Assembly 1/2" x 100'
Couldn't load pickup availability
Pro Rubber Jack Hammer Air Hose Assembly 3/4" x 100'
Couldn't load pickup availability
Rubber Air Hose Reel Heavy Duty Single Arm Assembly 3/8" x 50'
Couldn't load pickup availability
Pipe Close Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R4AT• Fittings Certified: Z-Series
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service, ABS
• Construction:
– Inner Tube: CPE
– Reinforcement: One helical cable wire between two textile layers plus one fabric braid
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +275°F (–40°C to +135°C)
• Application Note: Hydraulic suction hose
Consists of no more than two pieces totaling 50 feet (±10%)
Technical Specifications
| Item#: | 64628 20 |
|---|---|
| Type | Suction and Discharge |
| Industry Rating 1 | SAE 100R4 |
| Manufacturer Series Number | H039 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1-1/4 (-20) " |
| Working Pressure | 200 PSI |
| Minimum Bend Radius | 4 " |
| Inner Tube Material | CPE |
| Hose Cover Material | Neoprene |
| Fitting Series | Z-Series |
| Temperature | -40F to +275F |
| Color | Black |
| Size | 1-1/4 (-20) |
| Mercury Vacuum (Inches) | 25 |
| UNSPSC #: | 40142000 |
| TAA Compliant: | Yes |
| Weight: | 37.0 lb |
