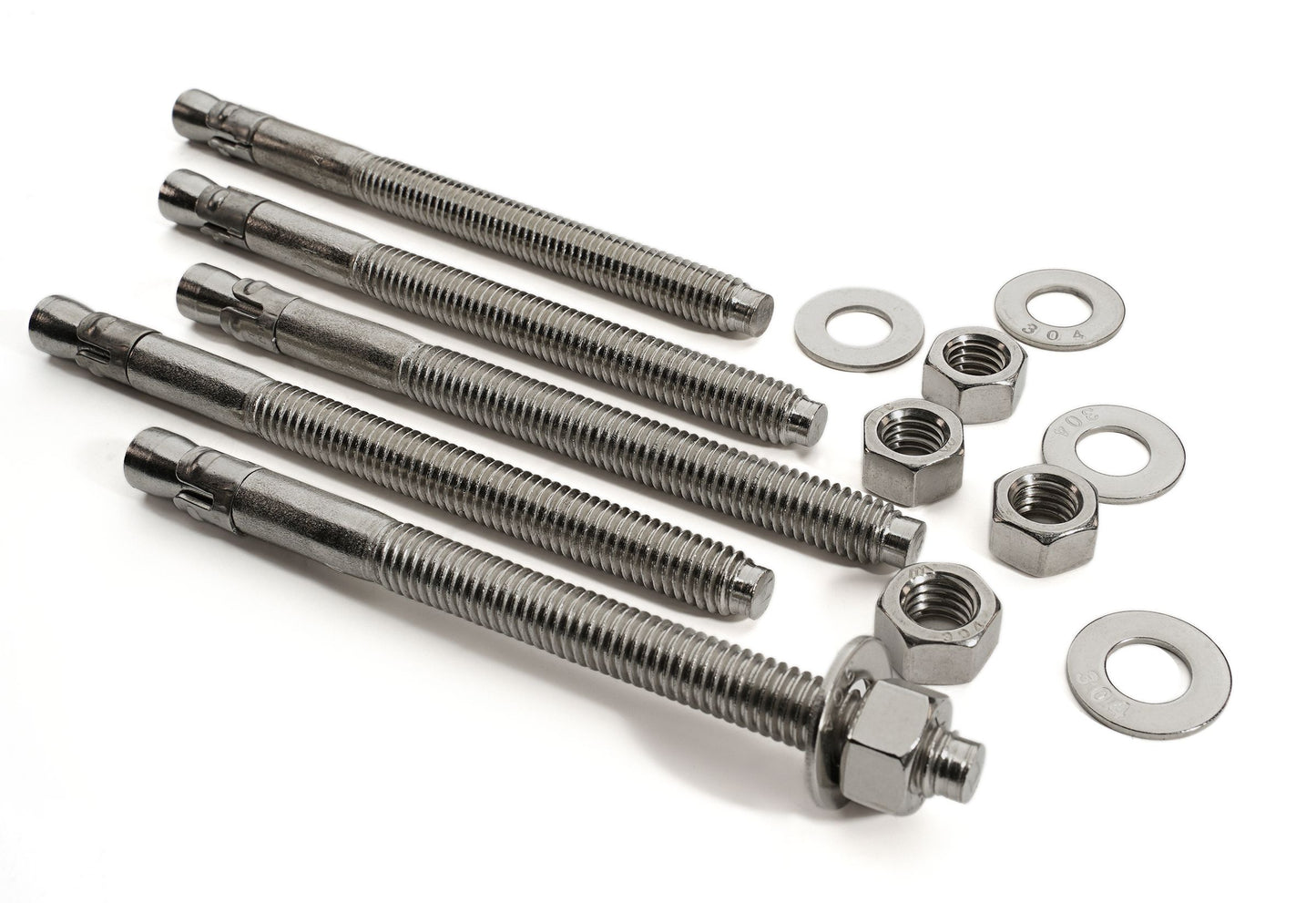

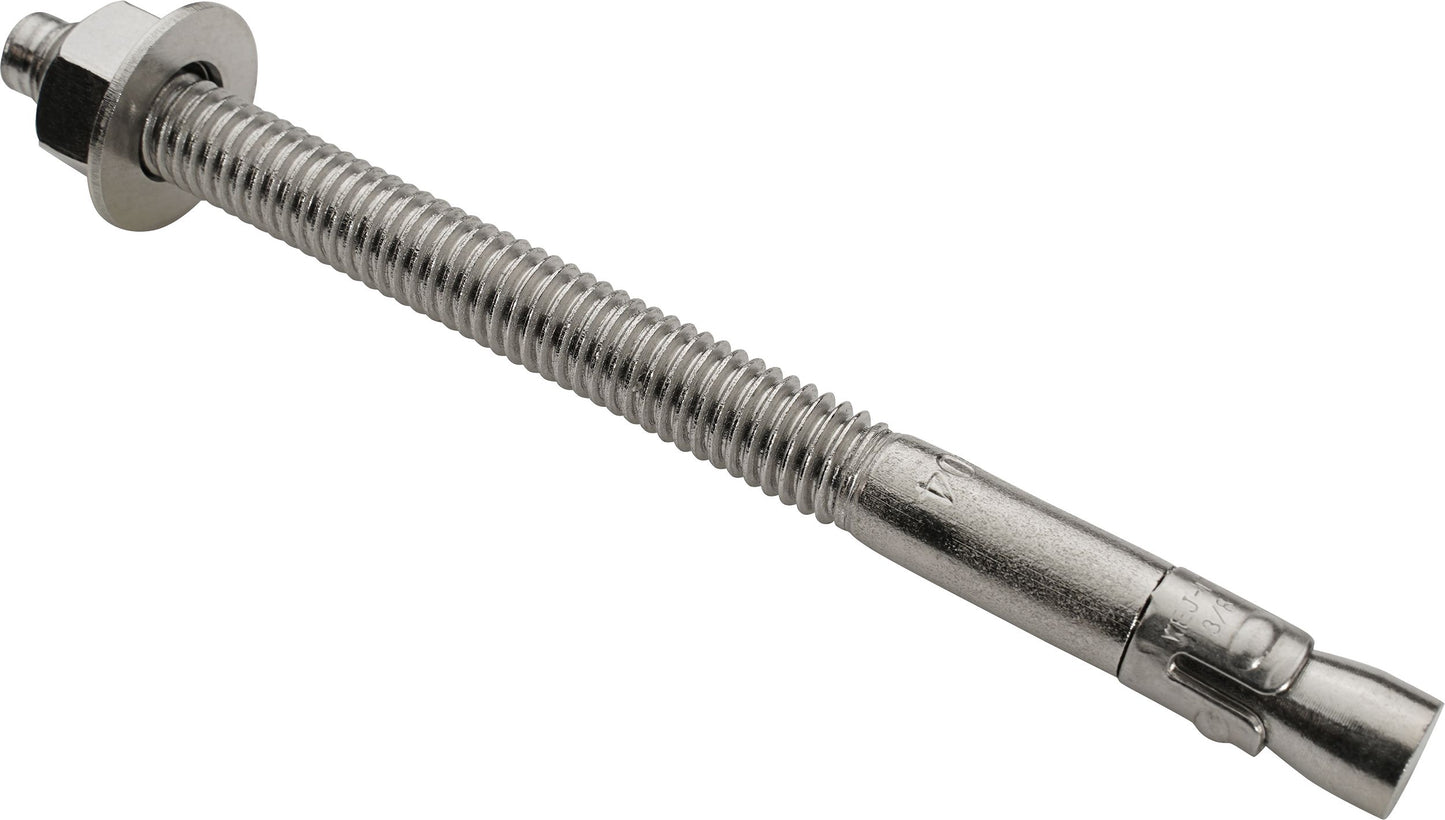

Wedge Type Stud Bolt Anchor, Stainless Steel, Plain Finish, 3/8 x 5"
(Pack of
5)
SKU:91628 Item#: 91628
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Toggle Bolt Anchor Assortment 70Pcs
$0.00
Couldn't load pickup availability
Conical Screw Anchor Kit Plastic 301Pcs
$0.00
Couldn't load pickup availability
Conical Screw Anchor Kit Plastic 401Pcs
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Wedge Type Anchor Bolt Steel 1/4 x 2-3/4"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 5-1/2"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 3/8 x 3-3/4"
$0.00
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91628 |
|---|---|
| Diameter | 3/8 " |
| Length | 5 " |
| Thread Length | 3-1/4 " |
| Drill Size | 3/8 " |
| Material | Stainless Steel |
| Finish | Plain |
| Type | Wedge Anchor |
| Proof Test Load | 2,420 lb |

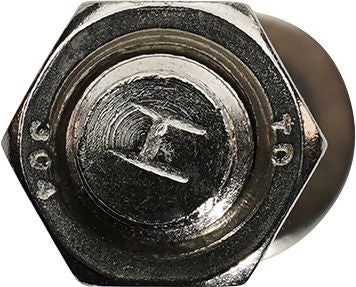

| Length Identification Code | G |
| Size | 3/8X5 " |
| Minimum Embedment | 1-3/4 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 0.74 lb |
