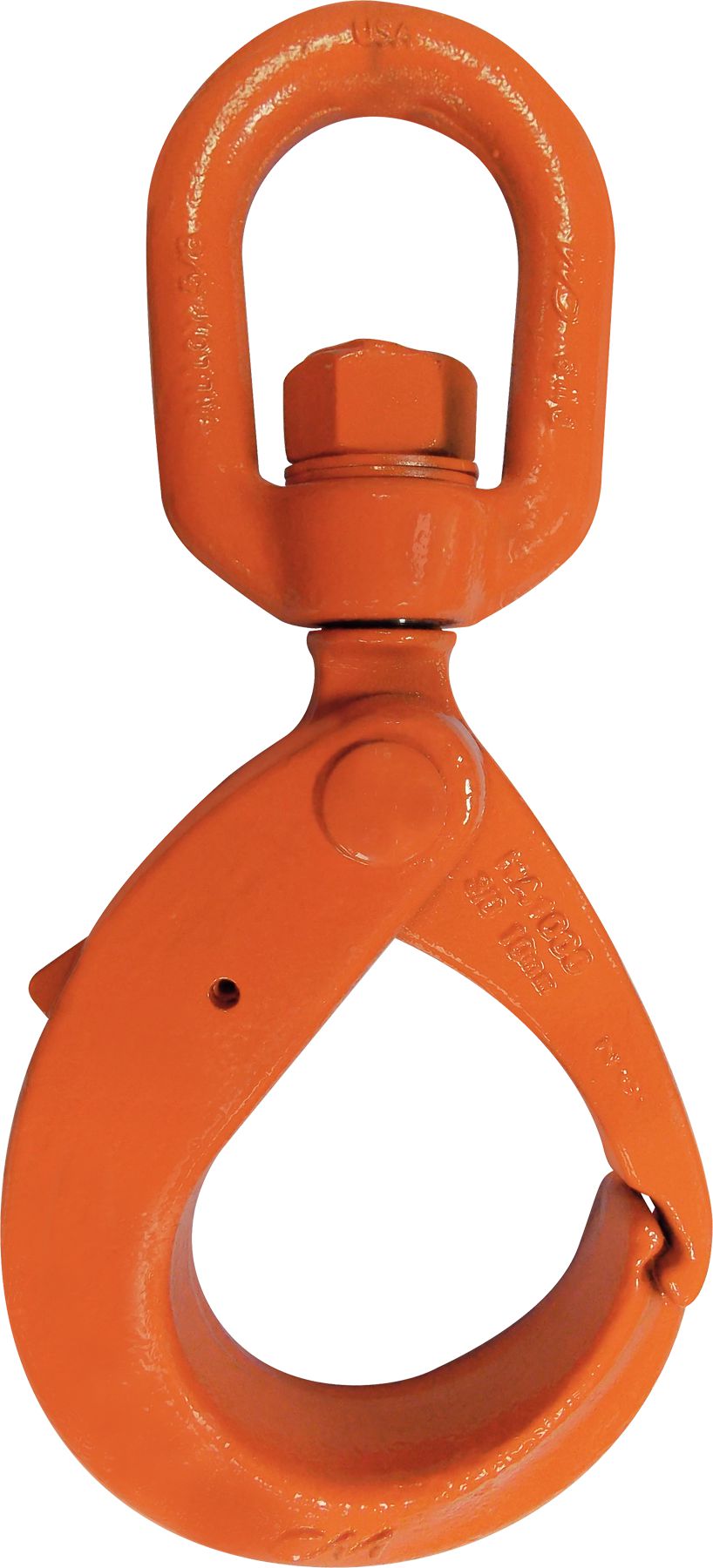

Bushing Swivel Style Latchlok Hook, Grade 100, 3/8", 8,800 lb WLL
(Pack of
1)
• The eye easily positions to attach to the load
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
The load must be swiveled and turned into position before attaching, lifting or moving a load.
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Connecting Link, Stainless Steel, 1/4", 1,400 LB WLL
Couldn't load pickup availability
Repair Lap Link, Stainless Steel, 1/4", 400 LB WLL
Couldn't load pickup availability
Chain Connector Link 5/16" Chain Size Grade 30
Couldn't load pickup availability
Clevis Slip Hook, Stainless Steel, 3/8"
Couldn't load pickup availability
Clevis Slip Hook, Grade 70, 3/8", 6,600 lb WLL
Couldn't load pickup availability
Grade 43 Eye Grab Hook, 3/8", 5,400 lb WLL
Couldn't load pickup availability
Shelf Bin, Yellow, 11-5/8" x 6-5/8" x 4"
Couldn't load pickup availability
ShelfMax™ Bin, Yellow, 23-5/8" x 6-5/8" x 6"
Couldn't load pickup availability
AkroBin®, Red, 14-3/4" x 16-1/2" x 7"
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• The eye easily positions to attach to the load• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
The load must be swiveled and turned into position before attaching, lifting or moving a load.
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429757 |
|---|---|
| Type | Bushing Swivel Style Latchlok Hook |
| Grade | 100 |
| Chain Size | 3/8 " |
| Working Load Limit | 8,800 lb |
| Material | Alloy Steel |
| Color | Orange Powder Coated |
| Dimension A | 1.75 " |
| Dimension B | 1.63 " |
| Dimension D | 4.76 " |
| Dimension F | 2.27 " |
| Dimension H | 0.77 " |
| Dimension M | 8.73 " |
| Dimension P | 1.07 " |
| UNSPSC #: | 31162605 |
| TAA Compliant: | Yes |
| Weight: | 5.29 lb |
