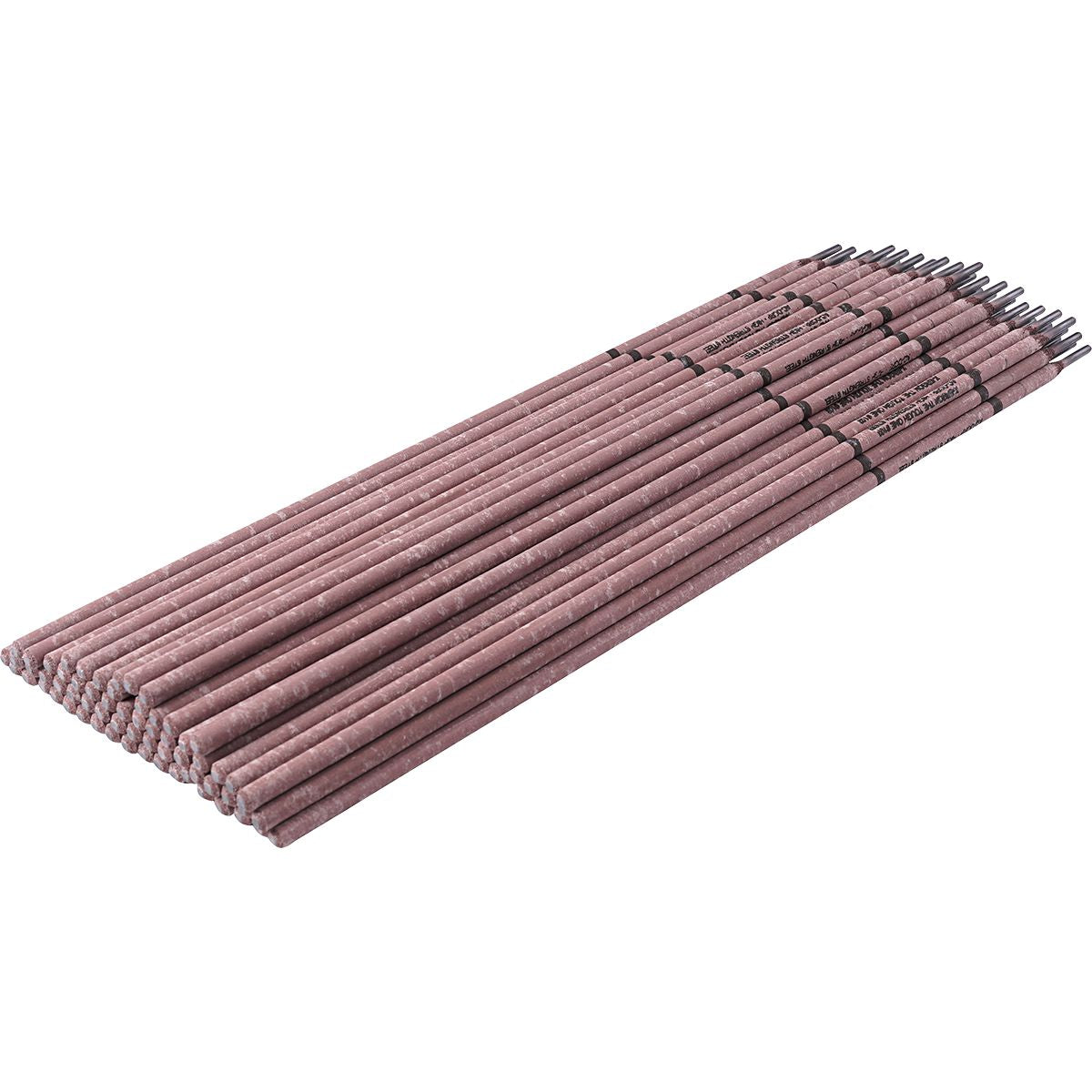

103 The Ultimate Low Hydrogen Mild Steel Electrode 1/8
(Pack of
5.0)
Special Chem-A-Tized2 flux coating changes the way welders think of low-hydrogen electrodes. It operates at lower amperages with better puddle control than all previous low-hydrogen electrodes. Additions of nickel and molybdenum make the weld deposit tough and strong, but still machinable.
• Improved Weldability – Operates like a low-hydrogen rod should, with an easy-to-see puddle, extremely low spatter and easy slag-removal
• Easy to use out-of-position and the weld goes where you direct it
• Superior Weld Toughness – Designed for tough maintenance applications
• Versatile – Designed for welding mild steel, low alloy steel, free-machining steel, high-strength steel, all with one rod
• New Chem-A-Tized2 coating provides better arc control, low spatter and better bead appearance
• Tensile Strength: Up to 92,000 PSI/634 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Elongation: 30%
• Machinability: Excellent
• Hardness: 89 Rb
• Impact Resistance: 50 ft.-lbs. @ -40°F/-40°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
602 High -Strength Flux Core Electrode .045X10LB SPOOL
Couldn't load pickup availability
340 Chromoly TIG Wire 1/16"
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Industrial Graphite Rod 1 x 12"
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
Couldn't load pickup availability
3/16 on 3/16 Dimension I Single Pass Overlay
Couldn't load pickup availability
192047 Plasma Cutting Electrode
Couldn't load pickup availability
8-7500 Plasma Cutting Shield Cup
Couldn't load pickup availability
Oxy-Therm Striker Plate
Couldn't load pickup availability
Product Description
Special Chem-A-Tized2 flux coating changes the way welders think of low-hydrogen electrodes. It operates at lower amperages with better puddle control than all previous low-hydrogen electrodes. Additions of nickel and molybdenum make the weld deposit tough and strong, but still machinable.• Improved Weldability – Operates like a low-hydrogen rod should, with an easy-to-see puddle, extremely low spatter and easy slag-removal
• Easy to use out-of-position and the weld goes where you direct it
• Superior Weld Toughness – Designed for tough maintenance applications
• Versatile – Designed for welding mild steel, low alloy steel, free-machining steel, high-strength steel, all with one rod
• New Chem-A-Tized2 coating provides better arc control, low spatter and better bead appearance
• Tensile Strength: Up to 92,000 PSI/634 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Elongation: 30%
• Machinability: Excellent
• Hardness: 89 Rb
• Impact Resistance: 50 ft.-lbs. @ -40°F/-40°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG1034000R |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 92,000 PSI |
| Yield Strength | 76,000 PSI |
| Elongation | 30 % |
| Base Metal | High Strength Low-Alloy Steel |
| Hardness | 89 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.04 lb |
